    Eco Green Series Hybrid Servo System Cnc Press Brake Metal Bending Machine For Sheet

    Ask Lasest Price
    Brand Name : genuo
    Model Number : EHC-63T/110T/130T/170T/220T/300T
    Certification : M.2019.206.C3862
    Price : negotiable
    Payment Terms : L/C,T/T,D/P,D/A
    Supply Ability : 1 Set/Sets Every 15~35 days
    Delivery Time : 90 days
    • Product Details
    • Company Profile

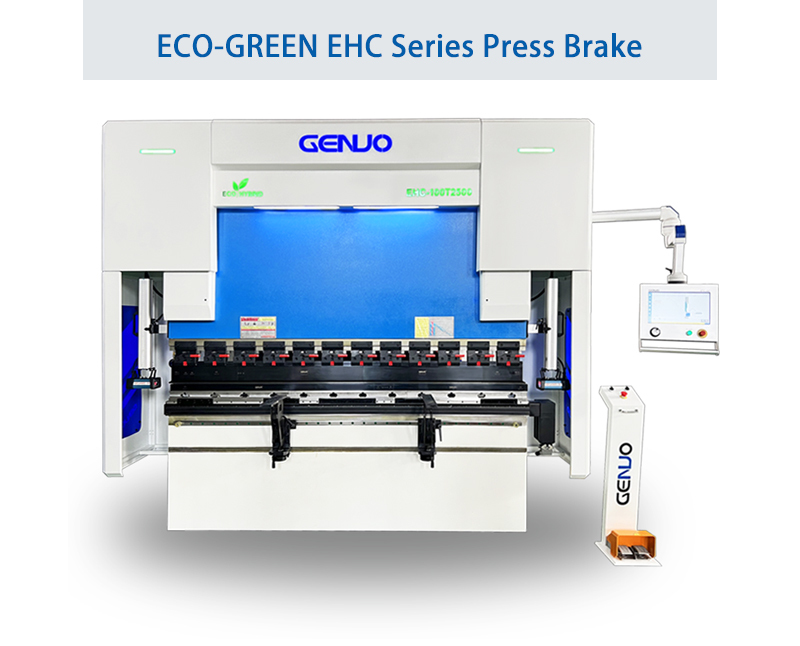

    Eco Green Series Hybrid Servo System Cnc Press Brake Metal Bending Machine For Sheet

    Electric-Servo Hybrid CNC Press Brake


    GENUO Eco-Green EHC series CNC press brake breaks the traditional bending machine technology and adopts the most advanced double pump control technology. The highly integrated hydraulic system greatly reduces the control of hydraulic pipeline and valve group, with low maintenance, no leakage and longer service life. The powerful Bi-Direction servo motor has no pressure loss through the proportional valve to achieve the highest bending efficiency. The pump control system forms a closed-loop control with the CNC system through the real-time feedback of the grating ruler, and the precision can reach the micron level. What's more exciting is that it saves 65% energy compared with the standard pressure brake. It also reduced oil consumption by 90%.Thanks to its quiet operation and low energy consumption, the Eco-Green CNC press brake is an extremely environmentally friendly Hybrid CNC bending machine.With abundant auxiliary bending and safety devices, it will be the best choice for high-precision and complex sheet metal production.40T~300T Optional.



      ABDEC
    ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
     (KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
    40T/160040016001300300420150430001950*1750*2350
    63T/2500630250020003204201505.548002850*1750*2350
    80T/2500800250020003504802007.558002850*1850*2450
    100T25001000250020004004802007.565002850*1850*2500
    100T/32001000320027004004802007.585003850*1850*2600
    125T/25001250250020004004802007.576003000*1850*2500
    125T/32001250320027004004802001190003850*1850*2600
    125T/400012504000320040048020011100004610*1850*2600
    160T/320016003200270040048020011105003900*1900*2600
    160T/400016004000320040048020011120004650*1900*2700
    200T/320020003200270040048020015120003900*1900*2700
    200T/400020004000320040048020015140004700*1900*2800
    200T/500020005000400040048020015180005800*1900*2900
    200T/600020006000490040048020015220006800*1900*3000
    250T/320025003200270040052025018.5145003900*2100*2800
    250T/400025004000320040052025018.5165004700*2100*2900
    250T/500025005000400040052025018.5200005800*2100*3000
    250T/600025006000490050052025018.5240006500*2100*3100
    320T/320032003200270040052025022170004000*2100*3000
    320T/400032004000320040052025022200004800*2200*3200
    320T/500032005000400050052025022250005800*2200*3400
    320T/600032006000490050052025022300006500*2200*3600
    400T/400040004000320050060032030260004800*2400*3500
    400T/500040005000400050060032030320005500*2400*3600
    400T/600040006000490050060032030380006500*2400*3800
    500T/400050004000320050060032037300004800*2600*3600
    500T/500050005000400050060032037390005500*2600*3800
    500T/600050006000490050060032037500006500*2600*4000
