    Wc67Y Small Press Brake NC 40T Torsion Bar Bending Machine

    Ask Lasest Price
    Brand Name : genuo
    Model Number : HTC-40T/63T/80T/100T/125T
    Certification : M.2019.206.C3862
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 1 Set/Sets Every 15~35 days
    Delivery Time : 90 days
    Price : negotiable
    • Product Details
    • Company Profile

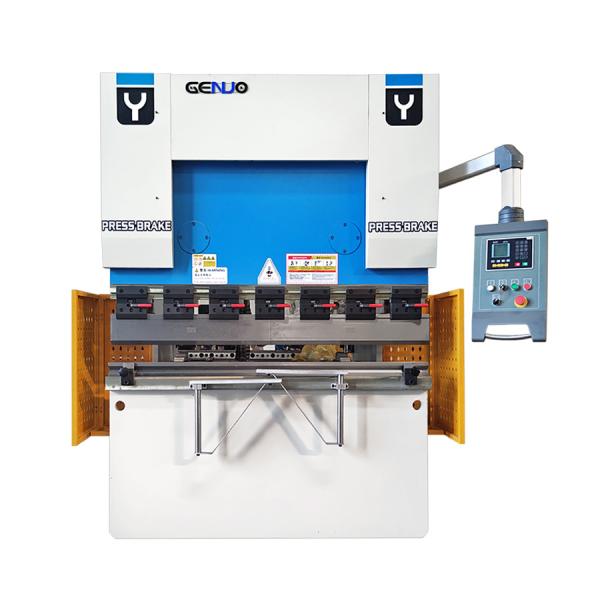

    Wc67Y Small Press Brake NC 40T Torsion Bar Bending Machine


    Easy To Use Wc67Y Small Press Brake NC 40T Torsion-Bar Bending Machine



    → Product Introduction:


    GENUO EASY HTC series CNC bending machines are the selling small sheet metal bending machine worldwide. Esay series press brakes adopts classic design. The high-strength frame and simple torsion bar structure ensure the synchronization of both ends of the press brake and the smooth operation of the ram. It can bring stable bending performance. High quality hydraulic system can burst out strong power and bending speed. Which can edit bending depth and stopping dimension via digital control system. Simple operation, low maintenance cost, more economical production & versatility Affordable price is a very good choice for simple bending workpieces. 30T ~ 400T optional.


    → Product Configuration:



    Standard Equipment:


    < Estun E21 NC control


    < Back gauge with linear guide and ball screw


    < Ram via double cylinder mechanical positioning


    < European-style punch and Multi-V Dies


    < Fast punch clamps and movable front support


    < SIEMENS main motor, Sunny pump, Rexroth Valve


    < EMB ferrule type pipe connector, NO,K sealing rings


    < 30~400 Tons and 4~20ft Bending Lengths options


    Feature:


    < X axis and Y axis numerical control


    < Motorized variable frequency drive


    < Depth adjustment for different angles


    < Adapt to sheet metal with different thickness


    < More efficient and variable bending


    < Powerful and durable bending power


    < Minimize oil leakage of the machine


    < Single/Tandem optional

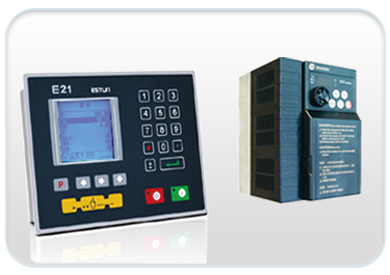

    ESTUN E21


    HD LCD display, with both Chinese and English

    language options,X, Y-axis intelligent positioning program.


    Control+converter via bus communication, ram and

    back gauge can be positioned fastand accurately.


    Easy operation with cost performance and high efficiency.



    Establishing the right back gauge for your projects will allow for increased part production and precision. From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost, the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.

    GENUO technicians are happy to assist you with any questions you may have on your project requirements.


    GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts

    in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece,

    which greatly expands your press brake function and revenue.
    To help greatly improve your productivity and business benefits.



    Light Curtain Switch


    The light curtain switch is applicable to some automatic factories to realize the regional management of machines.


    Ensure that the machine is stopped when the operator checks and repairs the machine or appears in the wrong position.


    Improve safety.

    Oil Fan Cooling Device


    In some tropical areas or uninterrupted operation

    is required, oil cooling device can be configured

    to avoid overheating of hydraulic oil and ensure continuous normal operation of the machine



      ABDEC
    ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
     (KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
    30T/16003001600125020022080315001650*1200*1700
    40T/160040016001250200240100426002000*1200*1900
    40T/250040025002030250340100430002500*1200*1900
    63T/2500630250020502503401205.540002500*1350*2100
    63T/3200630320025102503401205.548003200*1350*2100
    80T/2500800250020502503501205.545002500*1400*2150
    80T/3200800320025102503501205.555003200*1400*2150
    100T/25001000250020503203801207.550002500*1500*2200
    100T/32001000320025103203801207.565003200*1500*2300
    100T/40001000400031003203801207.576004000*1500*2400
    125T/32001250320025103203801207.570003200*1600*2350
    125T/40001250400031003203801207.585004000*1600*2450
    160T/25001600250020503204502001180002500*1650*2700
    160T/320016003200251032045020011100003200*1650*2800
    160T/400016004000310032045020011110004000*1650*2800
    160T/500016005000400032045020011140005000*1750*3100
    160T/600016006000460032045020011170006000*1750*3300
    200T/320020003200260032054025015130003200*1900*3100
    200T/400020004000330032054025015145004000*1900*3100
    250T/320025003200260040058025018.5170003200*2100*3150
    250T/400025004000330040058025018.5185004000*2100*3150
    250T/500025005000400040058025018.5220005000*2100*3200
    250T/600025006000450040058025018.5255006000*2100*3200
    300T/320030003200260040058025018.5205003200*2200*3200
    300T/400030004000330040058025018.5225004000*2200*3200
    300T/500030005000400040058025018.5250005000*2200*3200
    300T/600030006000460040058025018.5275006000*2200*3200
    400T/400040004000330040058025022265004000*2400*3200
    400T/500040005000400040058025022315005000*2400*3200
    400T/600040006000440040058025022360006000*2400*3200
    500T/400050004000330050062032030310004000*2650*3200
    500T/500050005000400050062032030365005000*2650*3200
    500T/600050006000441050062032030435006000*2700*3200
    500T/700050007000540050062032030530007000*2700*3200
    600T/400060004000330050062032037425004000*2700*3200
    600T/500060005000400050062032037480005000*2700*3250
    600T/600060006000460050062032037535006000*2700*3300
    600T/700060007000540050062032037600007000*2900*3500
