Small WC67Y NC Press Brake Machine Mini Bending Machine 40T

Ask Lasest Price
Brand Name :	genuo
Model Number :	HTC-40T/63T/80T/100T
Certification :	M.2019.206.C3862
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	1 Set/Sets Every 15~35 days
Delivery Time :	90 days
Price :	negotiable

Add to Cart

Product Details
Company Profile

Small WC67Y NC Press Brake Machine Mini Bending Machine 40T

On Slae WC67Y Small NC Press Brake Machine Mini Bending Machine 40T

→ Product Introduction:

Esay series press brakes adopts classic design - GENUO EASY HTC series CNC bending machines are the selling small sheet metal bending machine worldwide. The high-strength frame and simple torsion bar structure ensure the synchronization
of both ends of the press brake and the smooth operation of the ram. It can bring stable bending performance. High quality hydraulic system can burst out strong power and bending speed. Simple operation, low maintenance cost, more economical production & versatility Affordable price is a very good choice for simple bending workpieces. 30T ~ 300T optional.

→ Advantages of Genuo :

1. We are an ODM and OEM company that can produce machines according to the specifications, designs, and customer requirements of world-renowned brands.

2. Whatsmore, We have professional technology, advanced processing equipment, scientific quality management, continuously improving production capacity and creativity, which lay a solid foundation for the sustainable development of our company.

3. Our products have CE certification and SGS certification, and our factory has professional equipment testing and strict quality control.

4. For our customers, we can provide comprehensive customized and high-performance solutions to them, as well as great after-sales service, This is something that our competitors cannot meet.

5. The production process meets the highest standards to ensure exceptional quality and perfect detail. During the delivery period, we can customize high-performance solutions and timely after-sales service for you.

6. GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece.

→ Product Configuration:

Standard Equipment:

< Estun E21 NC control

< Back gauge with linear guide and ball screw

< Ram via double cylinder mechanical positioning

< European-style punch and Multi-V Dies

< Fast punch clamps and movable front support

< SIEMENS main motor, Sunny pump, Rexroth Valve

< EMB ferrule type pipe connector, NO,K sealing rings

< 30~400 Tons and 4~20ft Bending Lengths options

Feature:

< X axis and Y axis numerical control

< Motorized variable frequency drive

< Depth adjustment for different angles

< Adapt to sheet metal with different thickness

< More efficient and variable bending

< Powerful and durable bending power

< Minimize oil leakage of the machine

< Single/Tandem optional

→ Machine Detail :

ESTUN E21ESTUN E21

HD LCD display, with both Chinese and English language options, X, Y-axis intelligent positioning program.Control+converter via bus communication, ram and back gauge can be positioned fastand accurately.

Easy operation with cost performance and high efficiency.

Torsion-Bar Structure

High quality torsion-bar structure, shaft body adopts the traditionalforging and tempering process, which has high strength, good elasticity and adjustable design.

Backgauge System

Establishing the right back gauge for your projects will allow for increased part production and precision. From intricate parts which typically require more axes to large quantities that require more time.

Tooling and Clamps

GENUO provides a variety of tooling solutions to meet your different production needs.Not only that, we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece.

Siemens Main Motor

Using Germany Siemens main motor guarantee the machine service life andimprove the machine working stability. Reasonable matching makes the machine burst out strong and lasting pressure.

Rexroth Hydraulic Valve

The hydraulic valve is controlled in a variety of ways to start the hydraulic valve element to open or close, regulating the flow rate. Make the machine run safely and stably, extend the service life.

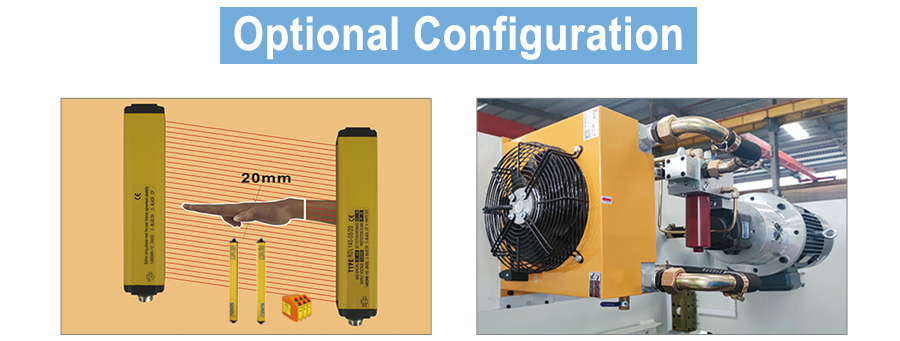

Light Curtain Switch

The light curtain switch is applicable to some automatic factories to realize the regional management of machines.Ensure that the machine is stopped when the operator checks and repairs the machine or appears in the wrong position；Improve safety.

Oil Fan Cooling Device

In some tropical areas or uninterrupted operation is required, oil cooling device can be configured to avoid overheating of hydraulic oil and ensure continuous normal operation of the machine

— HTC PRO Techical Specification—

		A	B	D	E	C
Model	Nominal Pressure	Length of Table	Distance Between Columns	Throat Death	Open Height	Ram Strokes	Motor Power	Approx Weight	Overall Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(kw)	(kg)	(L x W x H)(mm)
30T/1600	300	1600	1250	200	220	80	3	1500	165012001700
40T/1600	400	1600	1250	200	240	100	4	2600	200012001900
40T/2500	400	2500	2030	250	340	100	4	3000	250012001900
63T/2500	630	2500	2050	250	340	120	5.5	4000	250013502100
63T/3200	630	3200	2510	250	340	120	5.5	4800	320013502100
80T/2500	800	2500	2050	250	350	120	5.5	4500	250014002150
80T/3200	800	3200	2510	250	350	120	5.5	5500	320014002150
100T/2500	1000	2500	2050	320	380	120	7.5	5000	250015002200
100T/3200	1000	3200	2510	320	380	120	7.5	6500	320015002300
100T/4000	1000	4000	3100	320	380	120	7.5	7600	400015002400
125T/3200	1250	3200	2510	320	380	120	7.5	7000	320016002350
125T/4000	1250	4000	3100	320	380	120	7.5	8500	400016002450
160T/2500	1600	2500	2050	320	450	200	11	8000	250016502700
160T/3200	1600	3200	2510	320	450	200	11	10000	320016502800
160T/4000	1600	4000	3100	320	450	200	11	11000	400016502800
160T/5000	1600	5000	4000	320	450	200	11	14000	500017503100
160T/6000	1600	6000	4600	320	450	200	11	17000	600017503300
200T/3200	2000	3200	2600	320	540	250	15	13000	320019003100
200T/4000	2000	4000	3300	320	540	250	15	14500	400019003100
250T/3200	2500	3200	2600	400	580	250	18.5	17000	320021003150
250T/4000	2500	4000	3300	400	580	250	18.5	18500	400021003150
250T/5000	2500	5000	4000	400	580	250	18.5	22000	500021003200
250T/6000	2500	6000	4500	400	580	250	18.5	25500	600021003200
300T/3200	3000	3200	2600	400	580	250	18.5	20500	320022003200
300T/4000	3000	4000	3300	400	580	250	18.5	22500	400022003200
300T/5000	3000	5000	4000	400	580	250	18.5	25000	500022003200
300T/6000	3000	6000	4600	400	580	250	18.5	27500	600022003200
400T/4000	4000	4000	3300	400	580	250	22	26500	400024003200
400T/5000	4000	5000	4000	400	580	250	22	31500	500024003200
400T/6000	4000	6000	4400	400	580	250	22	36000	600024003200
500T/4000	5000	4000	3300	500	620	320	30	31000	400026503200
500T/5000	5000	5000	4000	500	620	320	30	36500	500026503200
500T/6000	5000	6000	4410	500	620	320	30	43500	600027003200
500T/7000	5000	7000	5400	500	620	320	30	53000	700027003200
600T/4000	6000	4000	3300	500	620	320	37	42500	400027003200
600T/5000	6000	5000	4000	500	620	320	37	48000	500027003250
600T/6000	6000	6000	4600	500	620	320	37	53500	600027003300
600T/7000	6000	7000	5400	500	620	320	37	60000	700029003500

→ Machine Application:

1. In the decoration industry, the production of stainless steel plates, doors and Windows;

2. Reprocessing of sheet metal products in the electrical industry;

3. In the kitchen catering industry, various specifications of stainless steel kitchenware;

4. In the communication industry, electric poles, road light poles, communication poles, traffic signal poles, etc.;

5. In the automotive industry, secondary processing of sheet metal;

6. In the aerospace industry, high-precision CNC bending mechanisms are used as high-precision products.

→ After-sale guarantee :

1. Free training Professional guidance and training to ensure the normal operation

2. Years WarrantySuper long-term warranty is our confidence in quality and commitment

3. Lifelong service Professional team to ensure that your machine is super long service.
