Flash GNST Single Table Laser Cutting Machine 1kW To 6KW

    Buy cheap Flash GNST Single Table Laser Cutting Machine 1kW To 6KW from wholesalers

    Buy cheap Flash GNST Single Table Laser Cutting Machine 1kW To 6KW from wholesalers
    • Buy cheap Flash GNST Single Table Laser Cutting Machine 1kW To 6KW from wholesalers

    Flash GNST Single Table Laser Cutting Machine 1kW To 6KW

    Ask Lasest Price
    Brand Name : genuo
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    • Product Details
    • Company Profile

    Flash GNST Single Table Laser Cutting Machine 1kW To 6KW

    GNST Metal Sheet Fiber Laser Cutting Machine


    Standard Equipment

    Optional Equipment

    ▼ Raycus or Max laser source

    IPG or nLIGHT laser source
    WSX or RayTools laser cutting head PRECITEC laser cutting head
    GENUO-Cypcut control software Beckhoff CNC control system
    High strength stress relieved frame Nodular Cast-iron integral frame
    Lightweight aviation aluminum beam Light protection barrier
    Motovario planetary reducer Alpha planetary reducer
    YYC gear rack,HIWIN guide rail Atlanta gear rack,Rexroth rail
    Hanli water cooling system Power regulator Device
    Automatic lubrication system Air compression system

    Configuration Details


    It is a professional machine design, novel appearance and many patented technologies.

    It has the advantages of high speed, small slit, smooth section, easy operation, low energy consumption suitable for continuous processing

    in large quantities, and highlighting cutting competitive advan tages.


    Schneider Electric

    MOTOVARIO Reducer

    Panasonic Servo Motor

    Schneider ElectricMOTOVARIO ReducerPanasonic Servo Motor

    The new generation of Schneider electrical

    switch components,durable to ensure the

    stability of your machine long service life.

    France MOTOVARIO Reducer is with high

    transmission efficiency , low energy

    consumption and superior performance.

    High precision, high speed,

    realizes closed-loop control

    of position,speed and torque


    Structural Advantages

    Aviation Aluminum Beam

    Aviation Aluminum Beam


    The crossbeam is made of aviation grade aluminum, After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.


    The lightweight and high rigidity of the crossbeam ensure the high-speed movement during laser processing. At the same time, it has perfect dynamic performance and meets the accuracy.


    With long service life, it can keep the shape unchanged to the greatest extent, so as to ensure the cutting accuracy and product quality.


    High Strength Heavy Frame

    High Strength Heavy Frame


    The main frame of the cutting machine is welded with high-quality carbon structural steel with tensile strength up to 500MPa, After high tem-perature annealing and natural aging to eliminate welding stress, deformation prevention, more durable.


    Then by the large-scale precision gantry machining center for precision machining.Stable and reliable bed, no deformation, to ensure long-term cutting accuracy and machine stability.


    Optional casting machine bed.


    Main Accessories



    Advanced Laser GeneratorIntelligent Cutting CNC Control

    Standard configuration of stable and efficient

    Raycus or MAX laser generator.

    Modular design, highly integrated system,

    free from maintenance, high reliability.


    The laser power is continuously adjustable,

    with high beam quality and high laser stability.

    It is an ideal laser source for laser fine cut,

    precision welding and other applications.

    Compared with other similar lasers in the

    market, our laser has obvious advantages.

    Optional IPG and nLIGHT Laser.

    The whole series of laser cutting machines

    are equipped with CypCut laser cutting control

    software or HypCut ultra-high power laser

    cutting control software.With high accuracy

    visual positioning system and integrated CNC

    system successively.

    It is easy to use and has powerful functions,

    which can meet and apply to various process

    -ing occasions. In addition, it has WiFi remote

    control function. Escort your machine wherever

    it is used.

    Optional Germany PA8000, Siemens CNC cutting system


    Exactly Matched Laser Head


    Exactly Matched Laser Head


    All Genuo laser cutting machines are standard

    equipped with WXS or Raytools auto-focusing

    laser cutting heads.


    The cutiing heads have a built-in motor drive

    unit, which drives the focusing lens through

    a linear mechanism to change position

    automatically.


    Customers can set the program to achieve

    continuous focus that completing the rapid

    piercing and cutting material with different

    thickness.


    The design of water-cooled structure allows

    laser heads to work stably and chronically.


    Optional PRECITEC and Lasermech laser

    cutting heads.

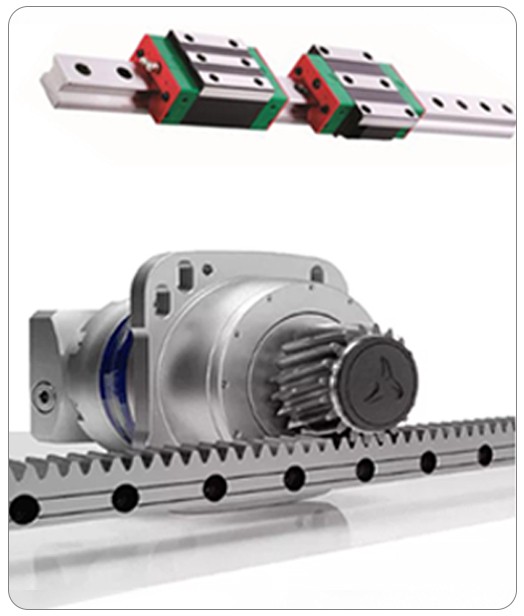

    High Precision Transmission Parts


    High Precision Transmission Parts


    Special Japanese SHIMPO or French

    Motovario flange reducer, precision

    rack and pinion, silent linear guide.


    Connect the lathe bed and the cutting

    part precisely.


    Let the machine run in a very smooth

    and efficient way.


    With the automatic lubrication system,

    the maintenance of mechanical parts is

    greatly reduced.


    Optional Atlanta reducer, rack and pinion.


    Superior Quality Electrical Components


    Superior Quality Electrical Components


    The machine adopts Japanese Fuji or Panasonic

    servo motor and drive up to 6000r / min.


    Powerful torque and power greatly improve

    the cutting efficiency.


    At the same time, it has extremely accurate

    positioning accuracy and long service life.


    The main electrical accessories are Schneider

    and Siemens, reasonable line connection and

    optimization.


    Ensure a very low failure rate.


    Optional Yaskawa servo motor and drive.



    Optional Installation




    Power StabilizerDust Collector

    Unstable voltage can cause mortal

    injury or equipment malfunction,

    affect production, cause delivery

    delays,and unstable quality.

    At the same time, it accelerates the

    aging of the equipment, affects the

    service life and even burns the parts,

    so that the owner is faced with the

    problem of repairing or having to

    update the equipment in a short

    period of time, wasting resources;

    In severe cases, even security

    incidents can occur, causing

    incommensurable losses.

    Therefore, Therefore.

    If your factory voltage fluctuates

    greatly or is unstable, it is

    necessary to use a voltage Stabilizer.

    The harmful smoke and dust produced

    by laser cutting is very harmful to

    human health and the core components

    of the machine.

    Therefore, it is urgent to choose a waste

    gas treatment method. The smoke and

    dust enter the internal filtering system

    of the equipment through the smoking

    pipe and are discharged locally.

    The filtering system is composed of

    physical and chemical multi-level

    filtering system, and the purification

    rate is up to 99%.

    It can not only remove smoke, but also

    eliminate pungent odor.

    This kind of equipment is specially used

    for the purification of smoke and dust

    of laser machine.

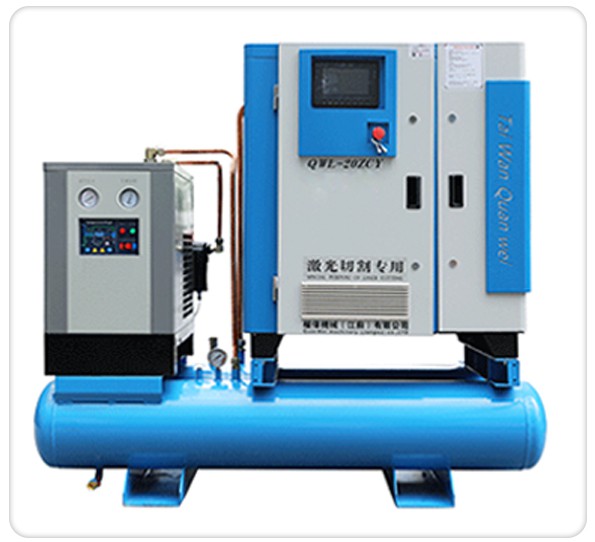

    Air Compression System

    Air Compression System


    Special for laser cutting, it adopts integrated

    air compressor, air receiver, cold dryer, filter

    element, direct connection low resistance design.


    Sufficient flow, giving play to better cutting

    performance.


    The side exhaust air is designed to dissipate heat

    and is not easy to accumulate dust.


    Automatic and manual dual blowdown design to

    remove residual substances.


    Four stage filtration, YUKA brand, filter.

    Front mounted black oil mist filter, with

    good water and oil removal effect.


    The filtration precision of over setting oil and

    water removal can reach 0. 01PPM.



    Features


    fiber laser cutting machine factory


    The cutting machine adopts international famous brand advanced laser, which has high electro-optical efficiency, water-saving

    and power-saving. Especially important, it can be free of maintenance for a long time, save a lot of maintenance funds and time,

    and improve work efficiency.

    The overall main frame adopts gantry structure worktable.

    The high damping bed has good rigidity, high precision and stable operation.

    The frame structure is made of high-quality steel honeycomb welding. The machine tool is annealed, twice aged and processed

    by large-scale gantry milling machine. These design and processing means ensure that the machine tool has excellent seismic

    resistance, high rigidity and stability. It fully meets the stability requirements of the machine tool in high-speed motion.

    The high precision double side rack and pinion drive and linear guide rail are adopted, and the powerful dual drive servo motor

    drive system is used to effectively ensure the speed and accuracy of laser cutting.

    Also can choose the exchange type worktable, the failure rate is extremely low, the exchange time is short,

    greatly improves the production efficiency.


    Cutting Ability


    GENUO laser cutting machine has powerful cutting ability, "flying" cutting speed, ultra-high stability,

    high quality processing, extremely low operating cost and ultra-high adaptability.


    Technical Parameter


    laser cutting machine technical parameter
