    MS3R Series Plate Rolling Machine , Three Roll Plate Bending Machine

    3-Roller Plate MS3R Series Rolling Machine


    Mechanical Symmetry 3 Roller Plate Rolling Machine


    Standard EquipmentOptional Equipment
    ▲ Wireless button remote control△ Digital screen display control console
    ▲ C45 hard quenching & tempering roller42CrMo solid forging roller
    ▲ Schneider & Omron electrical componentsSide motorised rolls
    ▲ Copper alloy anti-wear gearSegmental inlay roller ring
    ▲ NSK Double row self aligning bearingCentralised manual lubrication
    ▲ Enclosed sheet metal coverCustomized colors

    1 Configuration Details

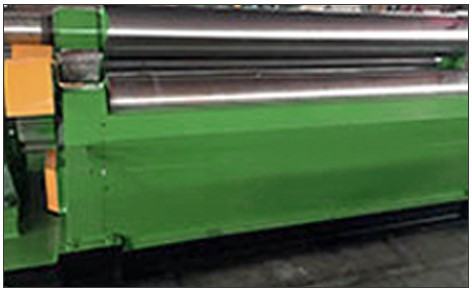

    Working Roller


    Roller is the most important components of the rolling machine, its quality and performance has a direct impact on the service life of the rolling machine and the precision of rolling.

    Working rollers are made of high-strength high-quality steel 42CrMo material, after forging, roughing, quenching and tempering, HB240 ~ 300, finishing after the intermediate frequency quenching HRC47-58, according to JB/ZG4289-86 roll steel standards.


    Strictly in roller manufacturing, to ensure its comprehensive mechanical properties.

    Working Roller




    Electrical Components


    Schneider Electric components ensure the stable operation of the machine. Reasonable line connection and arrangement greatly reduces

    the failure rate. The integrated control module

    of hydraulic valve group makes the sliding block move smoothly and accurately.


    And the operator and all parts of the machine played a good protection. It's safe, stable and

    not easy to break. Low Noise and Powerful

    motor guarantee the machine service life

    and improve the machine working stability.

    Electrical Components



    Roller Rotation


    Stepper Motor → Planetary Gearbox → Working Roll

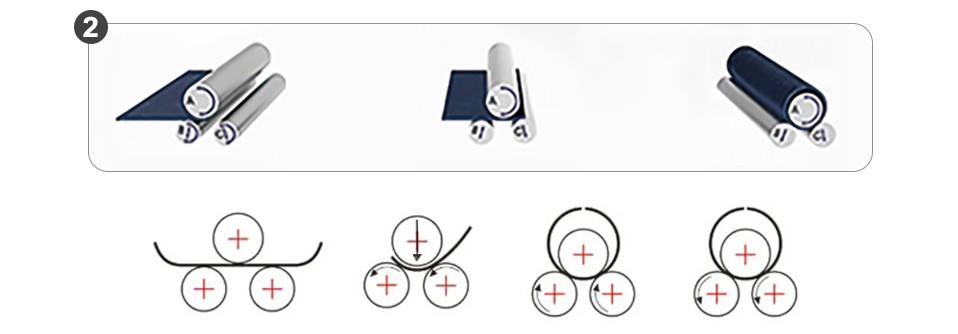

    Symmetric geometry in the roll movement featured by the 3-roll bending rolls of the series assures optimal traction. The upper roll can

    bend the plate by moving up and down, while the fixed lower roll can realize the plate rolling by turning forward and backward.

    The row self aligning bearing of the upper roll with low resistance plays a strong role in supporting and preventing the sheet from

    slipping to the maximum extent.


    Roller Rotation
    Roller Rotation


    2 Main Structure

    The machine is a three - roll symmetrical mechanical structure. The upper roller moves up and down in the center of the

    two lower rollers. Both nuts and worm gear act as drives. The two bottom rollers serve as the main driving rollers.

    By engaging, it rotates between the output gear of the transmission and the bottom roll, thus providing torque to the

    bending plate. Simple operation, convenient maintenance, high cost performance.

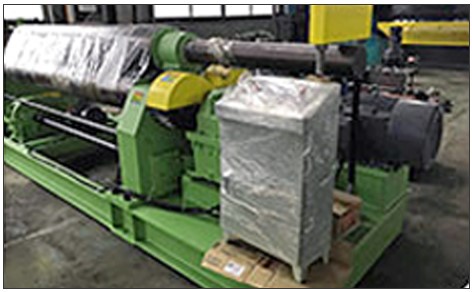

    rolling machine picture


    Main Motor

    Main Motor

    The main motor rotates the

    power via the reducer

    and gear drive roller.

    Roller Bearing

    Roller Bearing

    The wide self-aligning

    bearing make the roller

    rotate more smoothly.

    Electronic Elements

    Electronic Elements

    Schneider Electric keeps the machine stable running

    and long service life.

    Control Panel

    Control Panel

    Eectric cabinet panel and

    remote control. Safe

    and easy to operate.



    plate rolling machine



    3 Quality Assurance

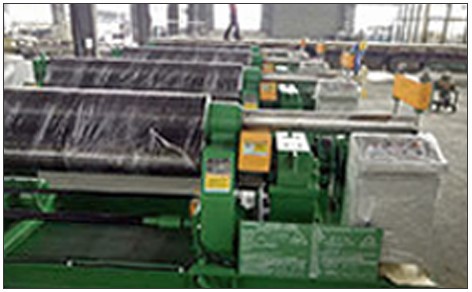

    rolling machine factory picture


    rolling machine factory

    cnc rolling machine factory

    plate rolling machine factory


    4 Technical Specification

    rolling machine technical specification
