    Low Noise Hydraulic HU3R Series 3 Roller Plate Rolling Machine

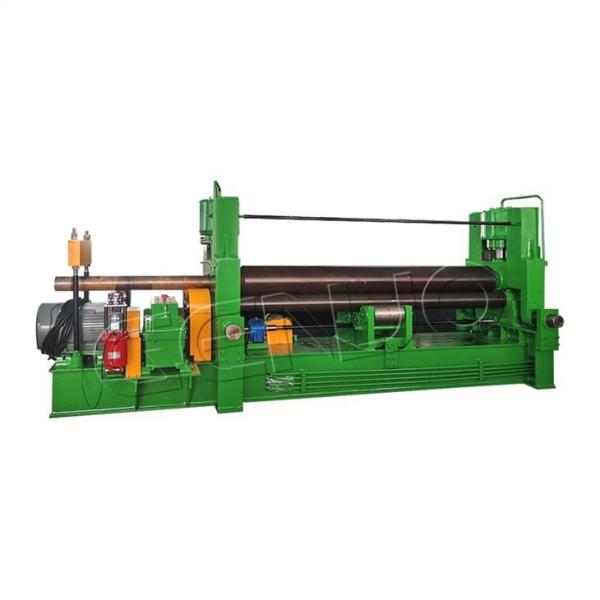

    Hydraulic Universal HU3R 3 Roller plate Rolling machine


    Standard EquipmentOptional Equipment
    ▲ Delta PLC NC controller,screen display△ SIEMENS CNC control system
    ▲ 42CrMo solid forging rollerCentral and side supports
    ▲ Schneider & Omron electrical componentsAutomatic loading and unloading systems
    ▲ YUKEN hydraulic valves, NO,K seal ringMotorised feeding and squaring tables
    ▲ NSK double-row spherical roller bearingSide motorised rolls
    ▲ Tamagawa precision rotary encoderProvision for hot rolling
    ▲ SIEMENS main motor,Sunny pump△ Integrated welding system
    ▲ Peika planetary reducer△ Automatic lubrication system
    ▲ Mobile wheel mounted control console△ Automatic ejector
    ▲ Centralised manual lubrication△ Customized colors

    1 Configuration Details

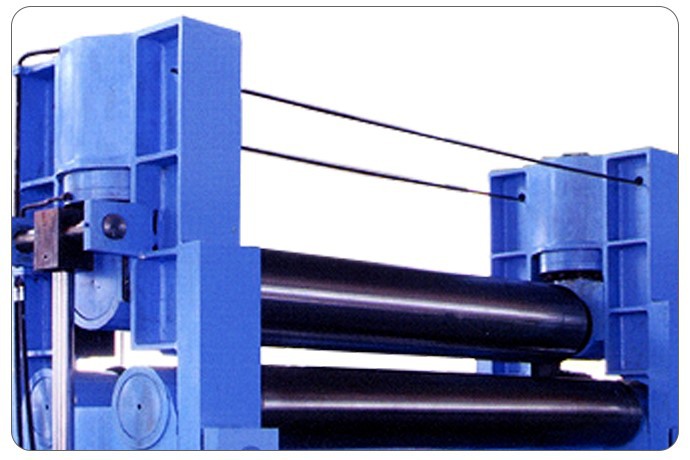

    Working Roller


    Roller is the most important components of the rolling machine, its quality and performance has a direct impact on the service life of the rolling machine and the precision of rolling.

    Working rollers are made of high-strength high-quality steel 42CrMo material, after forging, roughing, quenching and tempering, HB240 ~ 300, finishing after the intermediate frequency quenching HRC47-58, according to JB/ZG4289-86 roll steel standards.


    Strictly in roller manufacturing, to ensure its comprehensive mechanical properties.

    Working Roller

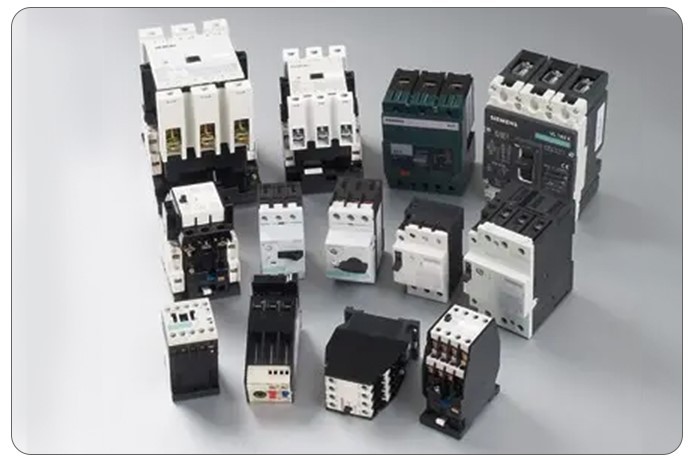

    Electrical Components


    Germany SIEMENS electrical components

    ensure the stable operation of the machine.

    Reasonable line connection and arrangement greatly reduces the failure rate.

    The integrated control module of hydraulic

    valve group makes the sliding block move smoothly and accurately. And the operator

    and all parts of the machine played a good protection. It's safe, stable and not easy to

    break.

    Low Noise and Powerful Force Siemens

    motor guarantee the machine service life

    and improve the machine working stability.

    Electrical Components

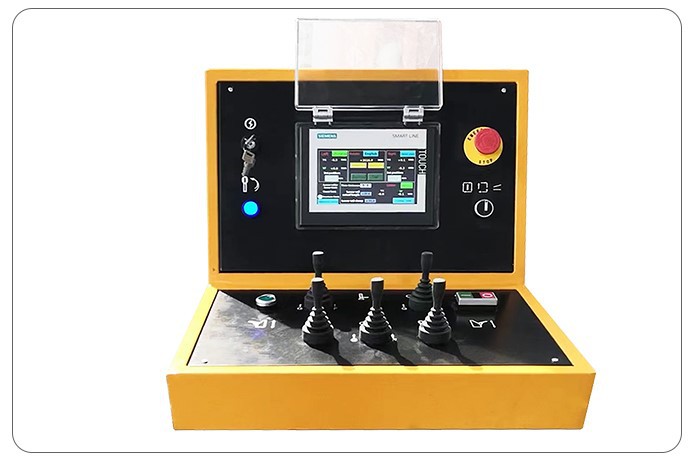

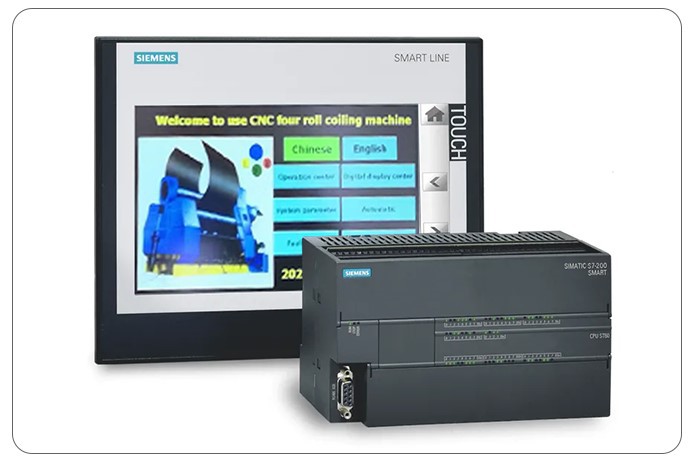

    CNC Control System


    Thanks to the CNC control and PLC of SIEMENS. Excellent HMI operation interface. Make our bending machine run at will.

    SIEMENS Smart Line provides a friendly interface for users to monitor the operation of machines in the control system.

    GENUO Rolling machine equipped with special independent operation panel and automatic rolling program so that can realize one-button

    operation. This machine can automatically rolling and forming at one time. Powerful data storage and recall functions.

    Hundreds of programs for arious specifications of automated rolling. The system is compatible with manual operation programs and can

    be manually operated when needed. At the same time, the configuration software also provides users with a variety of functions, such as

    formula management, security level management, language management, etc.

    ● Many models for choice,economic numberical control madel

    ● A PLC control system ensure the machine bottom and lateral rolls operate synchronously.

    ● Passed CE cetification to meet the needs of overseas markets.


    CNC Control System
    CNC Controller

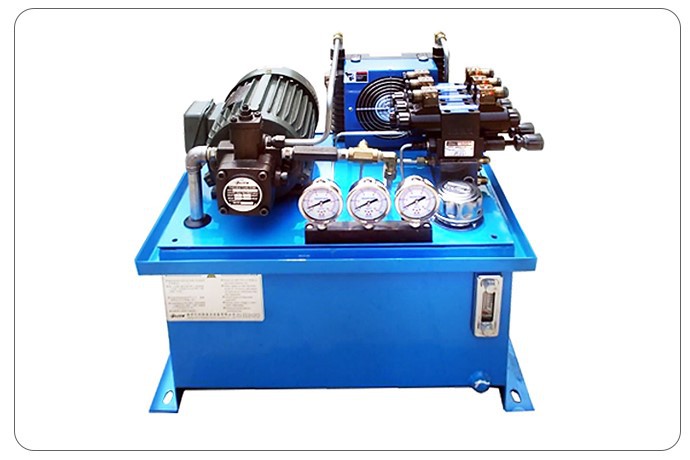

    Hydraulic System


    Each oil circut is routed with two relief vaive to control pressure.the maximum set pressure for each oil circuit is 25 MPa. which is mainly

    to control the main cylinder pressure. and the other relief valve is set to 16 MPa, mainly to control the overturning cylinder and balancing

    cylinder pressure.

    In order to ensure the synchroni- zation accuracy of the main oil cylinders at both ends of each moving working roll,high-precision

    displacement sensors are installed on the left and right racks and the tilting frames. Through the pressure sensors, the microcomputer

    control system detects and adjusts the movements of the main oil cylinder pistons to achieve the precison of the both working roller ends.

    Advantage of our hydraulic system:

    a. The unique pre-discharge technology is adopted to effectively avoid hydraulic shock and improve the life of the pipeline and seals.

    b. The hydraulic components are adopt Japan YUKEN and NO,K brand,hight qauality parts to ensure the stability of the hydraulic system.

    c. Each input and output port of the hydraulic system is provided with correspondina detection points, which are convenient for

    maintenance and fault checking. The oil pump adopts a lower mounted type and positive pressure oil absorption.

    At the same time the filters, level gauges, and all transmitting devices can automatically warn of faults.


    Hydraulic System table
    Hydraulic System machine


    2 Main Structure

    The machine support roll is installed at the lower part of the lower roll, so that the sheet and thick plate material form

    a perfect cylinder, with a conical bending device, easy to conical bending, multi-function bending process such as

    high-precision pre-bending edge, simple digital control, special bending.


    3 roller plate rolling machine


    Hydraulic element selects

    Hydraulic element selects the

    import high quality products,

    guarantee the stability of the

    hydraulic system.

    powerful motor

    The transmission part consists

    with powerful motor,

    gearbox and other accessories.

    Release device

    Release device :Hydraulic

    drop- end for easy removal

    of finished ferrule.

    perfect cylinder

    The top roller is designed as

    drum shape ,Bend a metal

    material into a perfect cylinder.



    3 Quality Assurance

    Metal rolling machine function application





    4 Technical Specification

    rolling machine technical specification
