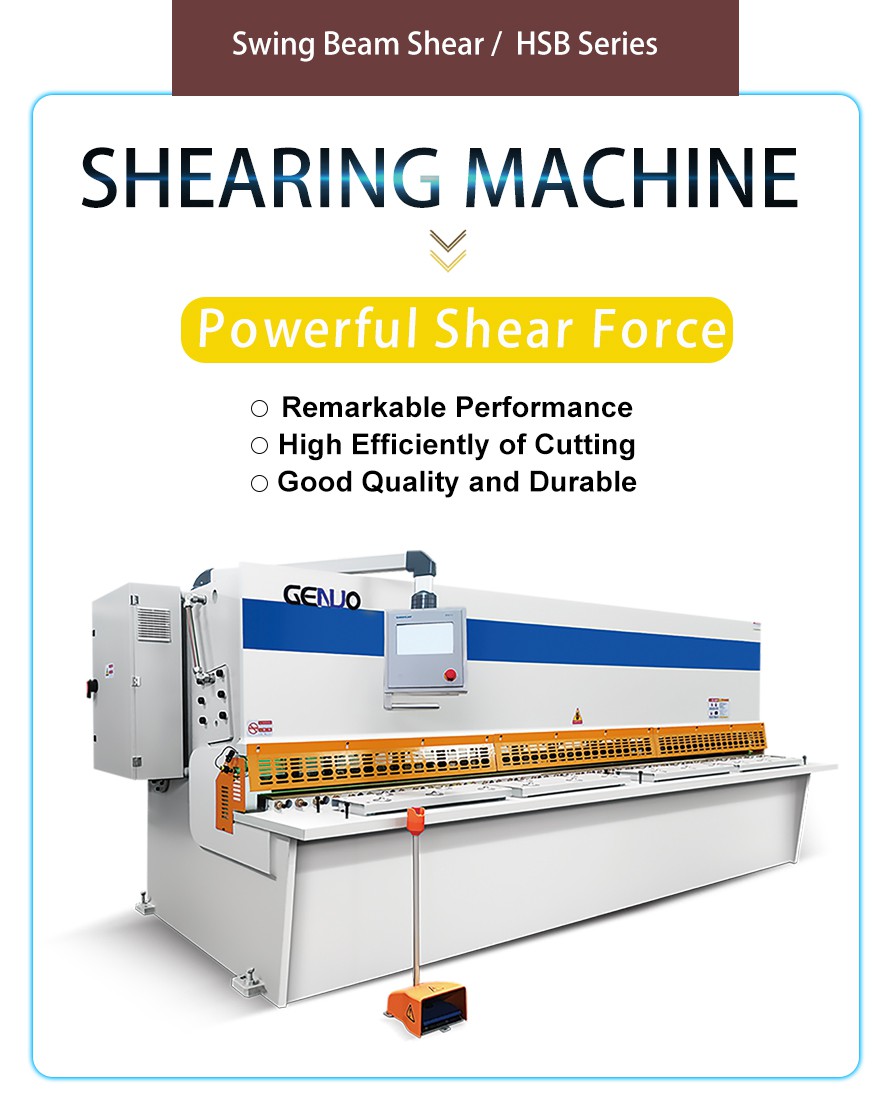

    HSB Series Swing Beam Shear CNC Plate Hydraulic Swing Beam Shearing Machine

    swing beam shearing machine


    Standard Equipment

    Optional Equipment

    ESTUN E21S NC control

    E200PS/ CybTouch 8/ DAC-360T CNC control
    Shilin stepping motor frequency converter Sheet support system for thin sheets
    Back gauge with roll guide and ball screw Energy saving main servo motor pump system
    SIEMENS main motor, Schneider electric Moveable controller panel,Wireless foot pedal
    Sunny pump,Rexroth hydraulic valve Hydraulic oil cooling and heating system
    EMB ferrule type pipe connector,NO,K sealing rings Automatic blade gap adjustment device
    Roller bearings on the front support table Front angle gauge and side gauge
    Sheet sliding system and front support arms Light safety system for finger protection
    Collapsible guardrail finger protection 4~20mm thickness,1.6~6M length optional

    CNC Controller

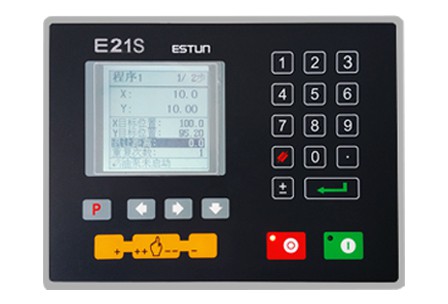

    Estun E21s NC Controller

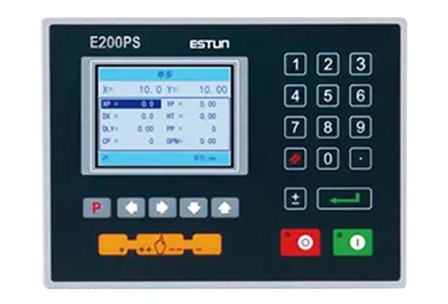

    Estun E200 NC Controller

    E21S(ESTUN)E200PS(ESTUN)

    Backgauge control;

    Control ordinary motors or inverters;

    Intelligent positioning;

    Dual programmable digital output;

    Workpiece count;

    40 program storage, Each program has 25 steps;

    Unilateral positioning;Yield function;

    One-key backup and restore of parameters;

    Metric system.


    CAN bus control X axis sevo;

    Shear control;Color LCD HD display;

    digital output;40 program storage,

    each program has 25 steps;

    Unilateral positioning;Dual programmable

    Built-in cutting time, retreat delay;

    One-key backup and restore of parameters;

    Full-function online diagnosis,

    real-time alarm prompt Reserve a safe,

    supporting material interface;

    Metric/English;Chinese-English.

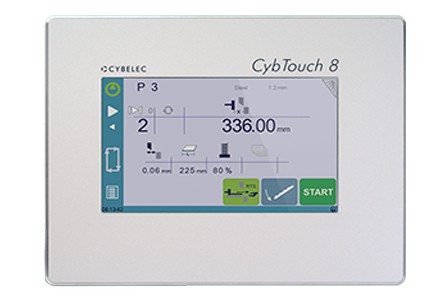

    Cybtouch 8 CNC Controller

    Delem DAC-360T CNC Controller

    CybTouch 8 G(CYBELEC)DAC-360T (Delem)

    High-contrast touchscreen,

    with vivid colors.Simple pages,

    large keys, clear display with

    all the information the operator needs.

    Intuitive and user-friendly interface.

    Complete programming of parts in

    seconds.Quick set up of the machine

    with theEasyCut page.

    Contextual help and waming pop-up.

    Panel based housing;Bright LCD screen;

    Back / front gauge control;

    Retract function;

    Cutting angle and gap control;

    Stroke length limitation;

    Manual movement of all axes;

    Force control;Sheet thickness

    measurement;Retum to Sender

    function; Sheet support.


    General Instructions


    Powerful frame & robust design for perfect cutting.Hardened and ground blades for long life and precise Proved and rigid design with swing beam

    top table Minimum deformation and optimum cutting quality with best cutting angle CE standards security.

    The combination of economic and perfect cutting performance CNC controlled gap adjustment and cutting angle. Adopt friendly CNC touch screen

    control unit Provide flexible use for narrow or wide, thin or thick sheet metal cutting.

    Automatic swing up back gauge for more comfortable use.Sheet support arms Balls trarifered table and T-slot front feedings arm helps pieces cutting.

    Table with balls and feeding plates


    Hydraulic Hold downs

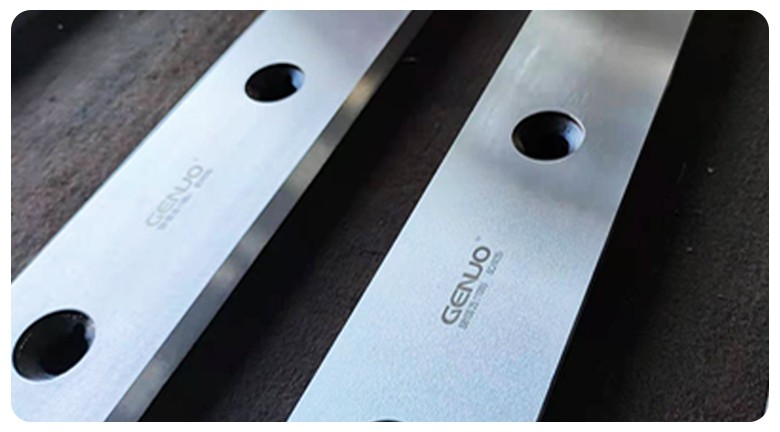

    Shear Blades

    Hydraulic Hold downsShear Blades

    Built-in spring structure,where

    the lower part with special

    materal gasketstoad leing

    trace line On aluminum alloy

    or other sensitive material .


    High Precision Ball Screw,Made using special

    alloy steel according to the customer's needs:

    material to be cut, holes & hardening.

    suitable to guarantee reliability & wear resistance.

    The machine can be equipped with 9CrSi,

    6CrW2Si and SKD-11 all steel shear blade.


    Main Configuration


    Backgauge Motor

    Fast Blade Gap Adjustment Device

    Backgauge MotorFast Blade Gap Adjustment Device

    The backgauge stopper is equipped with

    high-quality drive motor to run at a higher

    speed and stably. Optional servo motor.

    Simple and quick manual adjustment,

    the implementation of the blade gap

    adjustment.


    Siemens Main Motor

    EMB Bite Type Tube Fittings

    Siemens Main MotorEMB Bite Type Tube Fittings

    The powerful Siemens motor provides

    stable shear force guarantee the machine

    service life, and low noise in work.

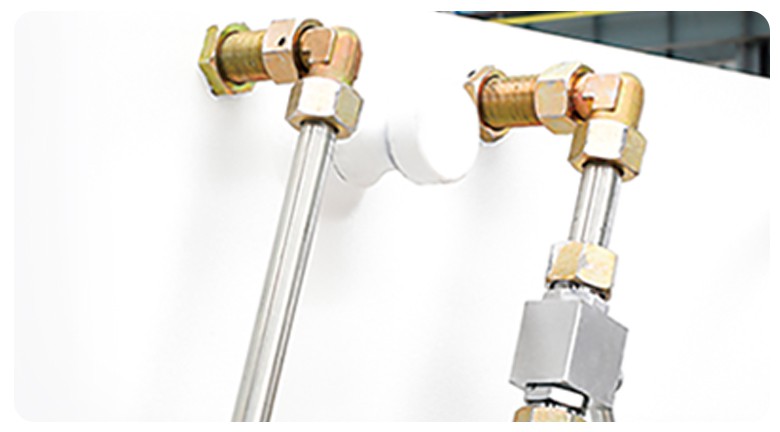

    Using galvanized cold drawn pipe and EMB

    ferrule type pipe joint.Reduce the risk of oil

    leakage by 50% compared with most machines.

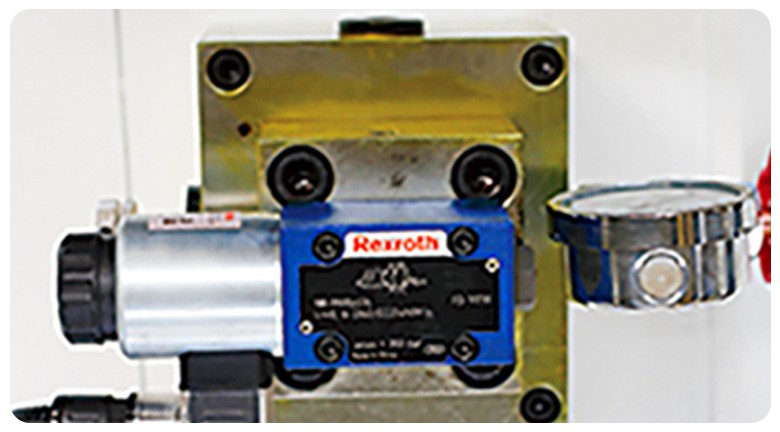

    Hydraulic Valve

    Electrical System

    Hydraulic ValveElectrical System

    The BOSCH (Rexroth) integrated hydraulic

    system is compact. Adopts electro-hydraulic

    proportional pressure valve, and the whole

    process pressure can be programmed and

    controlled to ensure machine stable .

    Our machine adopt Schneider electrical

    components. The high quality electric

    parts can make the machine performing

    well even the electricity is not stable and

    customers can easily get the replacement

    anywhere in the world.


    Characteristics

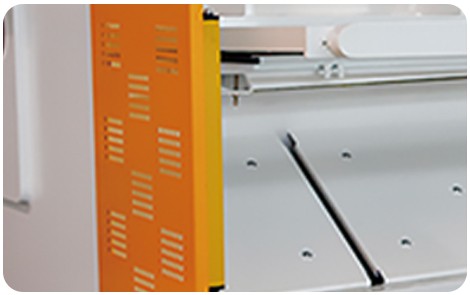

    Front Worktable

    Front Worktable
    - Ball Transfer Table

    Worktable with ball to decrease the friction and

    - Hydraulic Holddownsthe scratch of sheet plate when feeding .
    - Front Protection Frame

    Stable Back Gauge

    Stable Back Gauge
    - Fast and high accuracyThe unique and novel ball screw linear guide
    - Reliable movement

    structure back-gauge ensures high positioning accuracy.

    - Adjustment from each pointAdjustable beam guiding rule and synchronous
    - Resistance to crashtransmission structure, stable and reliable .
    - Maintenance free

    Upgradeable Instructions


    Vertical Adjustment and Front Stop Position Device

    Vertical Adjustment and

    Front Stop Position Device

    Angle Protractor Positioning Device

    Angle Protractor

    Positioning Device

    Pneumatic Sheet Support System

    Pneumatic Sheet

    Support System

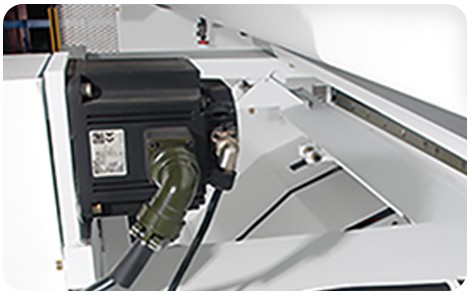

    Servo Motor

    Servo Motor

    Fast Blade Gap Adjustment

    Fast Blade Gap Adjustment

    Light Barrier Protection

    Light Barrier Protection


    Swing Beam Shear

    Shearing Machine

    Up to 20 Feet Cut Length


    Up to 3/4”Mild Steel Cutting Capacity


    Different Materials

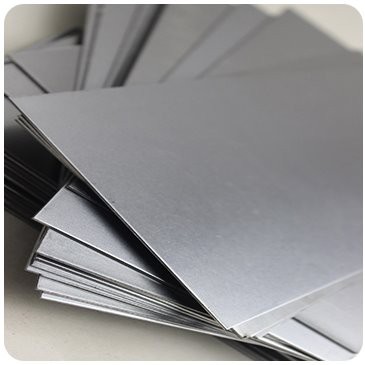

    Mild Steel

    Stainless Steel

    Mild SteelStainless Steel
    Smooth and neatSmooth and neat

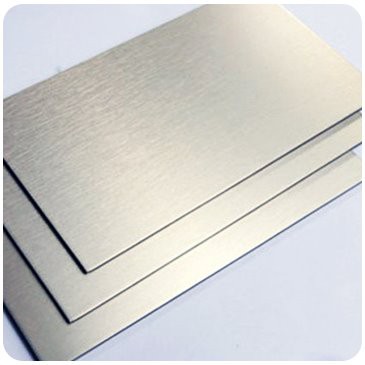

    Aluminum plate


    Sheet Copper

    Aluminum plateSheet Copper
    Smooth and neatSmooth and neat

    Techical Specification

    GENUO HSB series shears

    swing beam shears Technical parameter
