GREEN ECO Series CNC Press Brake 40T-300T High Precision

    Buy cheap GREEN ECO Series CNC Press Brake 40T-300T High Precision from wholesalers

    Buy cheap GREEN ECO Series CNC Press Brake 40T-300T High Precision from wholesalers
    • Buy cheap GREEN ECO Series CNC Press Brake 40T-300T High Precision from wholesalers

    GREEN ECO Series CNC Press Brake 40T-300T High Precision

    Ask Lasest Price
    Brand Name : genuo
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    • Product Details
    • Company Profile

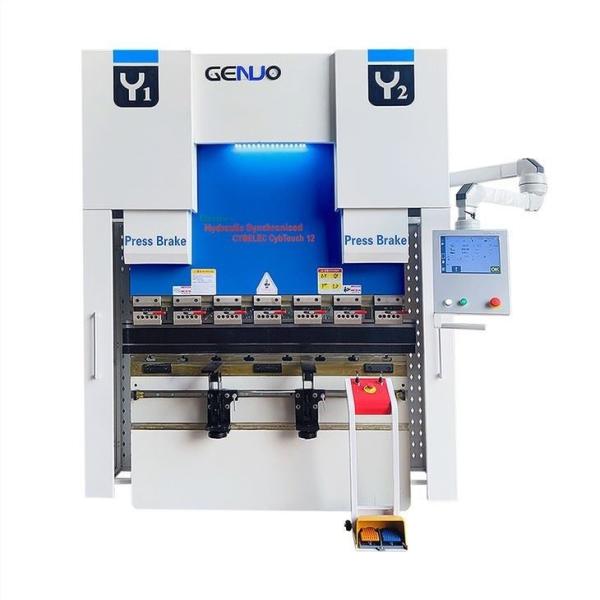

    GREEN ECO Series CNC Press Brake 40T-300T High Precision

    GREEN ECO Series CNC Press Brake


    EHC GREEN Servo Press Brake

    Standard Equipment

    Optional Equipment

    CYBELEC CybTouch 12/Delme DA-58T CNC Control

    Delem DA-66T, CybTouch 15T,ESA 875W
    Mono block welded rigid to deflection and high tensile steel frame 2 axis,4 axis,6 axis back gauge options
    Twin Electro-Hydraulic Hybrid System DSP or Lasersafe Laser front guard options
    Accurate heavy-duty X,R axis back gauge system Lasercheck angle detection feedback device
    Auto Motorized crowning system WILA type top and bottom tool clamping system
    European-style punch and 4V/2V/1V Dies Bending tools management cabinet or trolley
    Fast punch clamps and movable sliding front support Special heights, Daylight, Throat Depth are available
    GIVI or FAGOR linear encoder 40~800 Tons and 4~20ft Bending Lengths options
    Special integrated system without oil pipeline design Single/Tandem optional

    Dual Pump Control Mixing Technology


    Dual Pump Control Mixing Technology

    Backgauge System


    Establishing the right back gauge for your projects will allow for increased part production and precision.From intricate

    parts which typically require more axes to large quantities that require more time and therefore increased cost,

    the correct back gauge for each job is essential to lowering costs per part which ultimately benefts your bottom line.

    GENUO technicians are happy to assist you with any questions you may have on your project requirements.

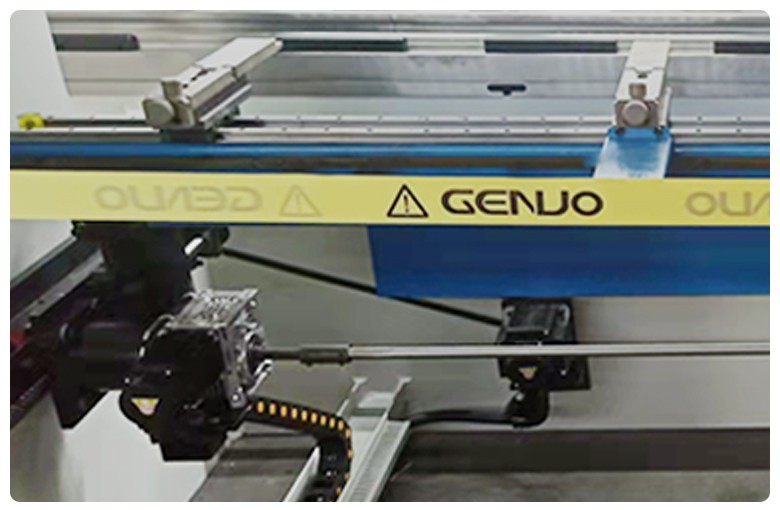

     2 Axis Back Gauge (X,R)

    2 Axis Back Gauge (X,R)

    4 Axis Back Gauge (X,R,Z1,Z2)

    4 Axis Back Gauge (X,R,Z1,Z2)

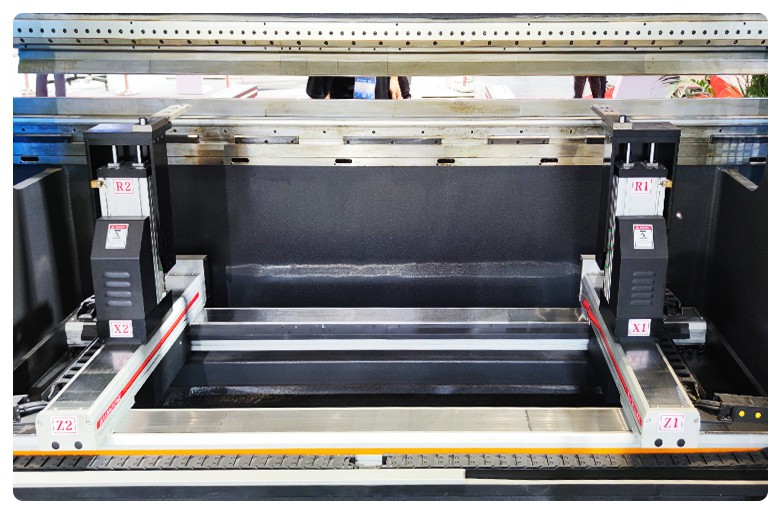

    6 Axis Back Gauge (X1,X2,R1,R2,Z1,Z2)

    6 Axis Back Gauge (X1,X2,R1,R2,Z1,Z2)


    WORLD-CLASS HYDRAULIC SYSTEM







    All GENUO's press brakes adopt world-class stable hydraulic system. To ensure the stable operation and lasting accuracy of the machine. At the same time, it also has

    its own hydraulic proportional synchronization technology, which can be develop and designed for different machines.

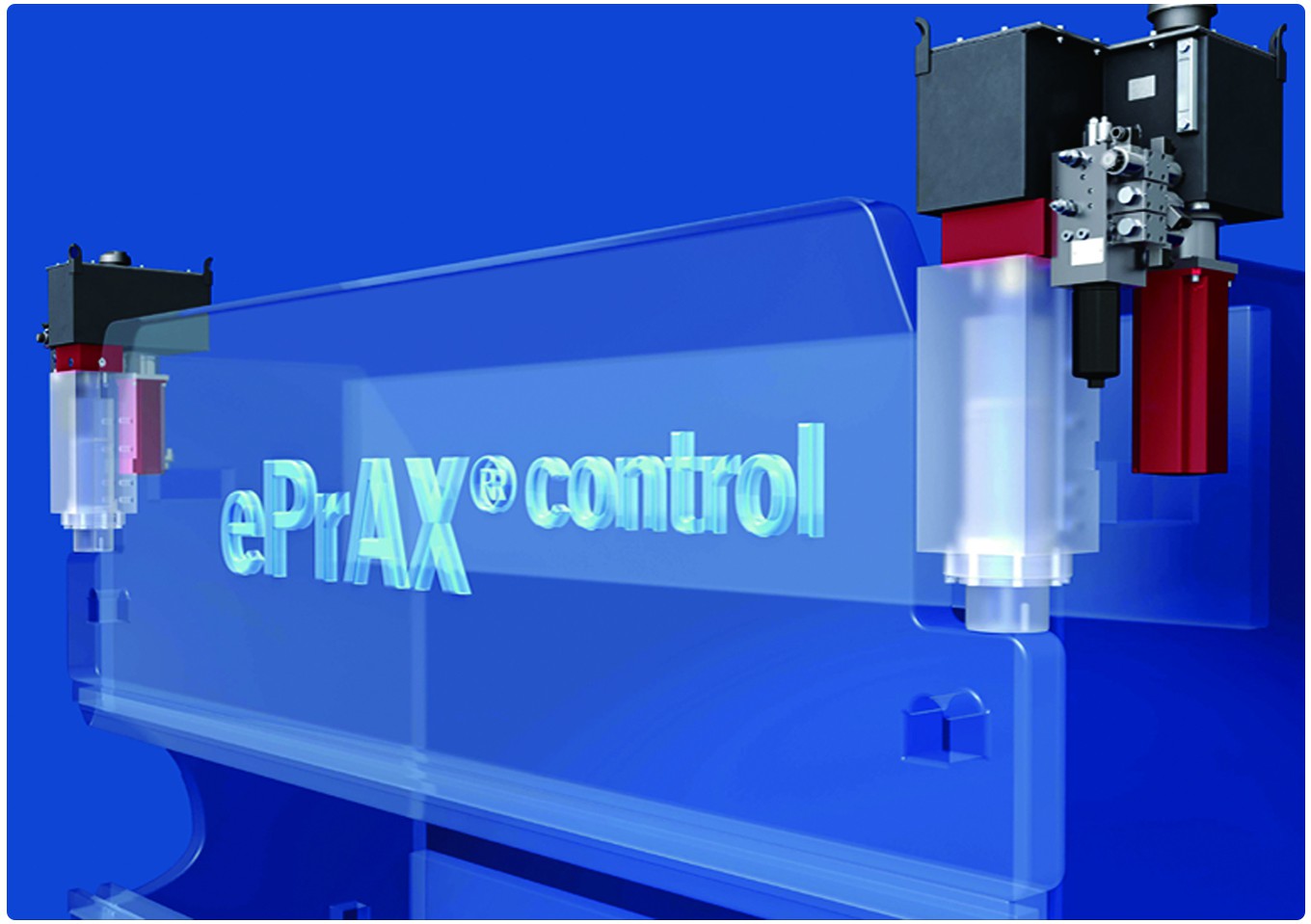

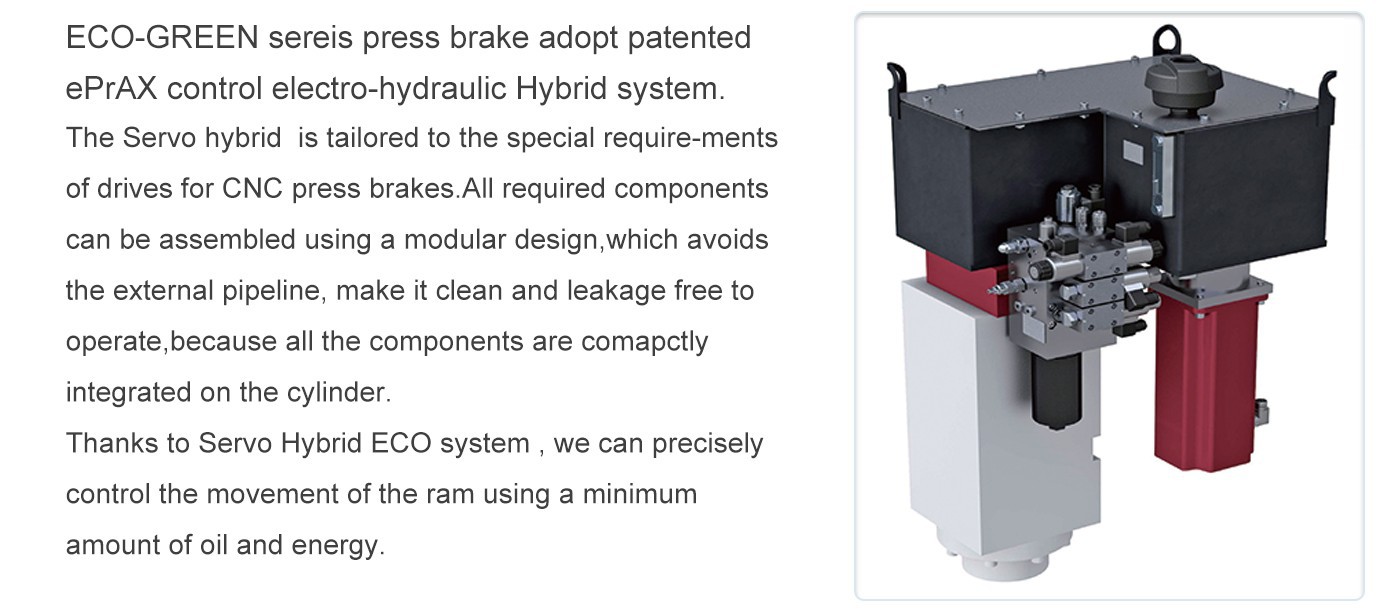

    EPRAX control electro-hydraulic


    Servo Hybrid Eco System


    SCALE CNC


    • Eco-friendly, saving 65% energy in comparison to standard press brakes. It also uses 95% less oil,which helps reduce manufacturing costs.

    • Fast operating press brake using servo motors and highly effcient pump.

    • Most accurate, having high bending accuracy between +/- .00003”

    • Highest bending effciency is achieved and no pressure is lost through proportional valves.

    • Quietest press brake, at a noise level of 63db. (TUV-SUD certifed)

    • No oil heat up thanks to the pumping system which does not run when the machine is in stand-by mode.

    • Provides fawless bending for small parts at different points.

    • Ease of maintenance. Y1,Y2 axes have stand-alone oil tanks.

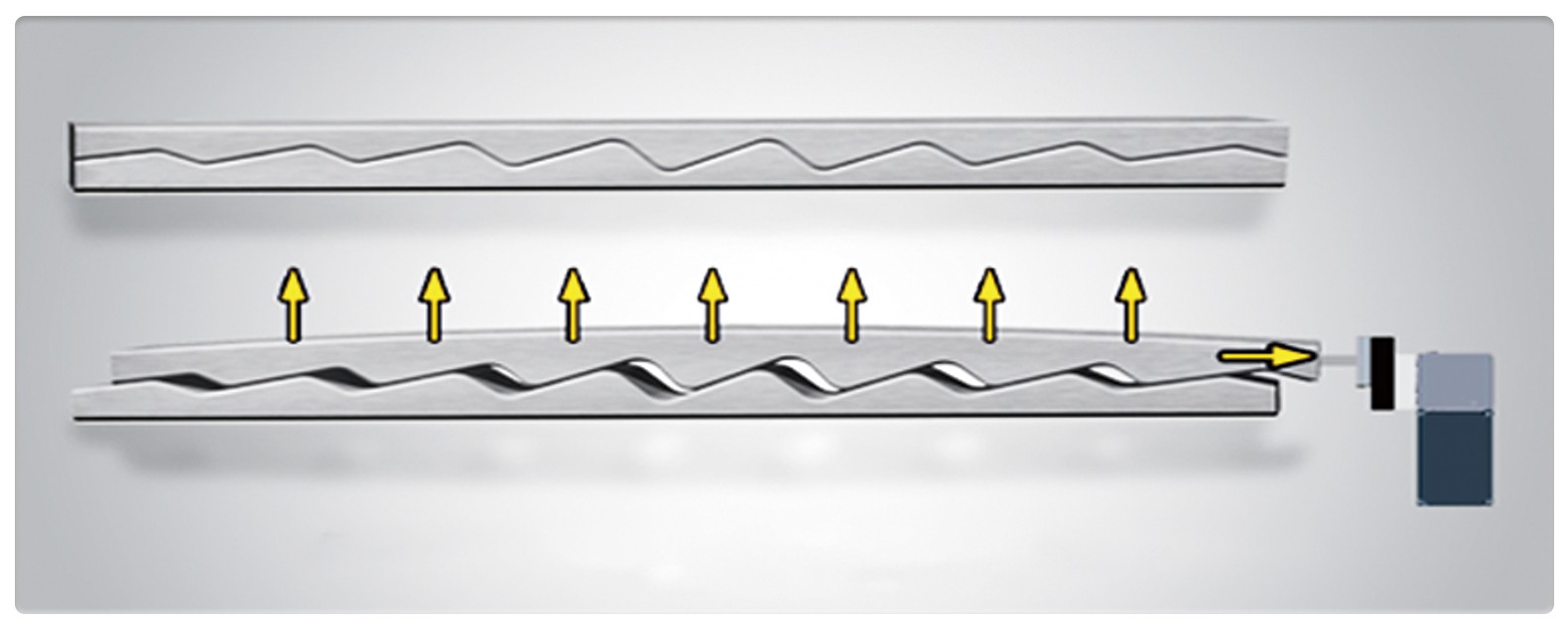

    Auto Crowning Systems


    To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for

    possible tooling wear to maintain parallel contacting surfaces.CNC crowning systems allow the press brake control to be

    pre-programmed with machine characteristics and defection data.

    Adjust the calculate and setting accordingly for different characteristics of different materials.


    preload crowning

    crowning tandard on GENIUS, ECO-GREEN,GAINT, Optional SMART,ESAY

    Standard on GENIUS, ECO-GREEN,GAINT, Optional SMART,ESAY


    CNC Motorized Crowning

    CNC Motorized Crowning


    Details and Features


    TOOLING AND CLAMPING


    GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools.

    If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.

    To help greatly improve your productivity and business benefits.

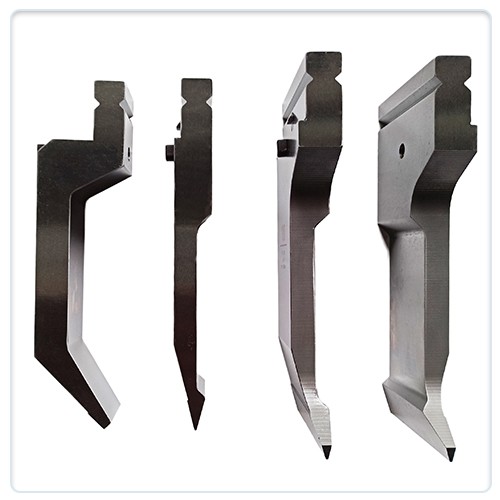

    press brake tool

    press brake clamping


    Promecam /EURO Style

    Promecam /EURO Style

    punch Standard on

    all series press brake.

    Optional other shapes.


    Wila NEW STD. Style

    Wila NEW STD. Style

    punch are optional.

    The clamp system needs

    to match this style.


    AMERICAN /Heavy Style

    AMERICAN /Heavy Style

    punch Standard on GAINT.

    Optional other shapes.



    4V,2V Reversible Dies

    4V,2V Reversible Dies

    T-Shape V Die Standard

    on GENIUS, ECO-GREEN.

    Optional on SMART,ESAY.


    Insert V Die

    Insert V Die

    Optional on GENIUS,

    ECO-GREEN,GAINT.


    Multi-V Dies

    Multi-V Dies

    Standard on SMART,ESAY,

    GAINT.Optional on GENIUS,

    ECO-GREEN.

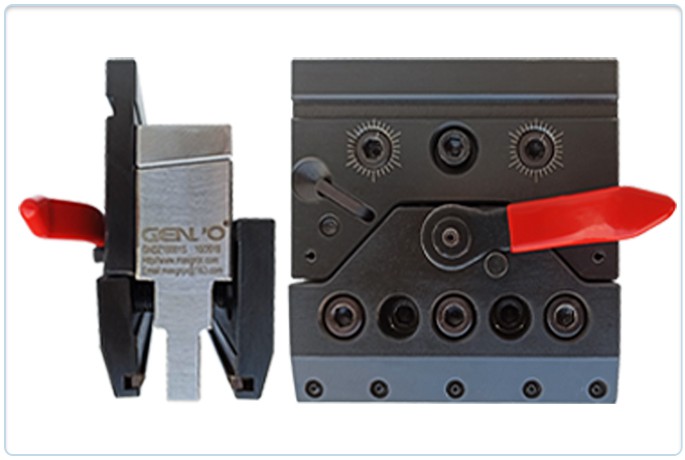

    GENUO One-Key Release Style Or Amada SGRIP Double-Sided Clamps

    Upgradeable GENUO One-Key Release Style Or Amada SGRIP Double-Sided Clamps

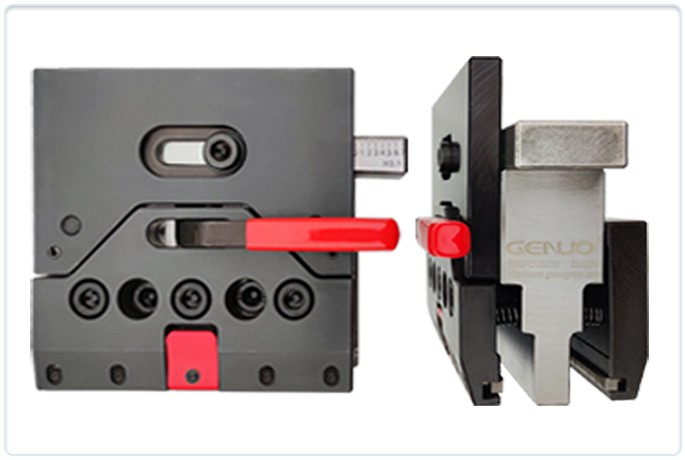

    GENUO One-Key Fast Clamp

    GENUO One-Key Fast Clamp

    Amada SGRIP Punch Holder

    Amada SGRIP Punch Holder


    Optional Configuration

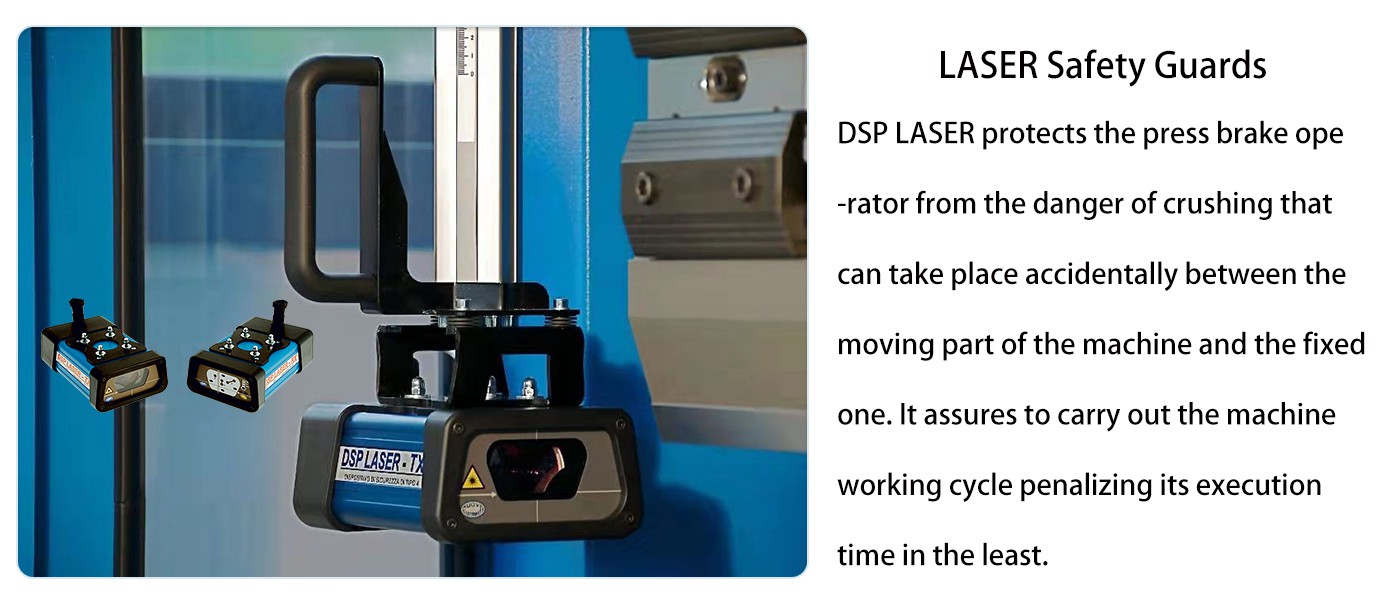

    Laser Safety Guards

    auto tool clamping system

    cnc sheet follower

    angle measure system

    bending robotic cell

    ECO Techical Specification

    E

    ECO press brake Techical Specification


    cnc press brake machine
