GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes

    Buy cheap GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes from wholesalers

    Buy cheap GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes from wholesalers
    • Buy cheap GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes from wholesalers

    GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes

    Ask Lasest Price
    Brand Name : genuo
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    • Product Details
    • Company Profile

    GENIUS HSC Ultra Series CNC Hydraulic Press Machine 9 Axes

    press brake


    Standard Equipment

    Optional Equipment

    Delem DA-66T CNC Control

    Delem DA-69T, CYBELEC VT19 MX, ESA 875W
    High-yield steel mono-block frame Main servo motor SVP control(Energy conservation)
    Precision Y1, Y2 axis synchronous Ram positioning CNC sheet follower front support device

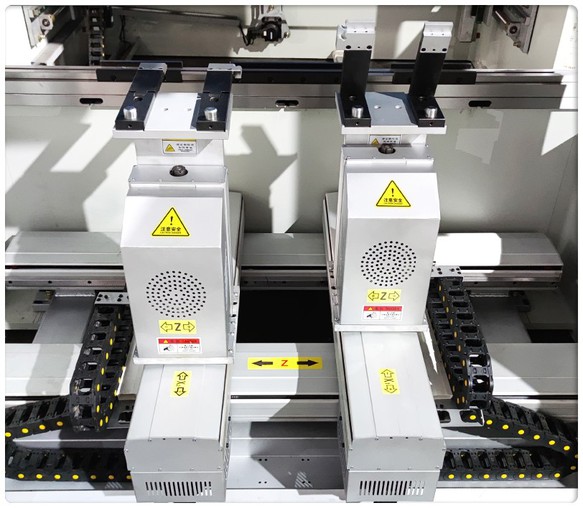

    Accurate X1,X2,R1,R2,Z1,Z2 axis back gauge Laser check angle detection feedback device
    Auto V axis motorized CNC crowning system WILA type top and bottom tool clamping system
    European-style punch and 4V/2V/1V Dies Fully automatic bending robotic cell
    Fast punch clamps and movable sliding front support Bending tools management cabinet or trolley

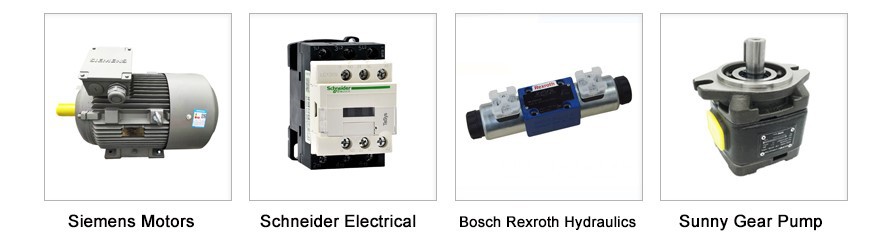

    BOSCH Rexroth hydraulic system,GIVI linear encoder Special heights, Daylight, Throat Depth are available
    SIEMENS main motor,Sunny pump,Schneider Electric 63~500 Tons and 8~20ft Bending Lengths options
    DSP or Keli Lasersafe protection guard Single/Tandem/Trio optional

    Machine Core Advantage

    press brake


    Structure Details


    pump


    Rigid Frame Construction



    ▼Master servo pump control technology

    The hydraulic press drive ePrAX ®modular adapted to

    the special requirements of drives for CNC press brakes.

    All required components can be assembled according

    to the modular principle.The exible arrangement

    allows an optimal use of the mounting space.

    For each actuator a servo motor takes over the control

    of power stroke and fast stroke as well as bending force.

    High dynamics with significant energy savings and

    shorter cycles,the operating noise of the press brake

    is drastically reduced by each adapted speed.

    ▼Rigid Frame Construction


    GENUO have vast experience with R&D and designing

    components to very tight tolerances with SOLIDWORKS ,

    CAD modelling techniques,and that CAE,ANSYS,

    SOLIDWORKS used as the method to analyze the

    linear static construction,stressand deformation for

    machine frames. So for complicated structures,

    highly com-plex loadings and transient modelling.

    The foundation of all GENUO press brakes is a solid,

    monoblock frame made from high-yield steel.


    Proportional Control
    Linear Encoder Feedback

    Proportional Control


    The deformation is measured accurately and

    compensated by feedback method.

    The accuracy can be achieved uM level.

    ▼Linear Encoder Feedback

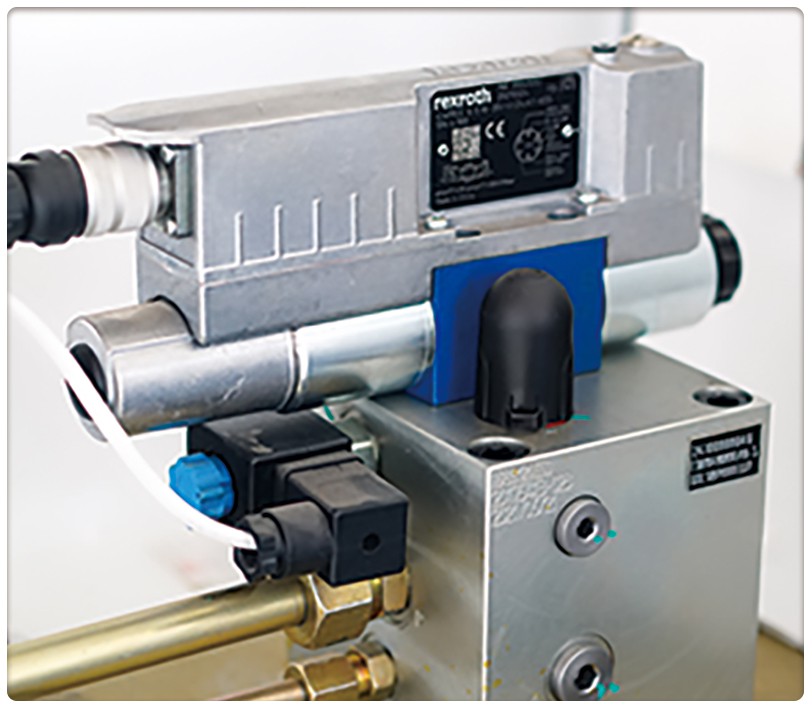

    German Bosch Rexroth integrated "hydraulic system block",

    hydraulic transmission with high reliability , integrated

    hydraulic system can effectively alleviate the problem

    caused by leakage of hydraulic fluid.


    press brake part

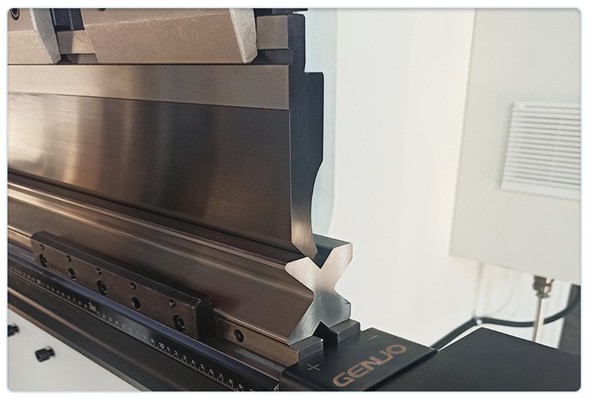

    Tooling and Clamping


    GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools.

    If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.

    To help greatly improve your productivity and business benefits.


    press brake tool

    tool



    EURO Style Clmaping System

    EURO Style Clmaping System

    and Tools are optional

    fast clamps

    GRPH One-Key Quick Release

    Clamps are standard on.

    1V Die Standard on.Mutil-V

    1V Die Standard on.Mutil-V,

    4V/2V Dies are optional.


    Auto Crowning Systems

    To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for

    possible tooling wear to maintain parallel contacting surfaces.CNC crowning systems allow the press brake control to be

    pre-programmed with machine characteristics and defection data.

    Adjust the calculate and setting accordingly for different characteristics of different materials.


    auto crowning systems

    GENIUS, ECO-GREEN,GAINT, Optional SMART,ESAY

    All CNC Press Brake above 1600mm are equipped as standard.


    CNC Motorized Crowning

    CNC Motorized Crowning


    Optional Configuration


    6 6


    Servo Pump Control Technology


    The main servo motor SVP can controls the power stroke, fast stroke, and bending force. It can significantly reduce idle overflow and noise of actuator, suppress oil temperature rise, and ensure continuously stable opera- tion. Modular structure makes installation more flexible and consumes less hydraulic oil (save 40% energy in comparison to standard press brakes)


    Auto Tool Clamping System


    WILA'S state of the art Clamping systems can offer the ultimate solution when it comes to efficiently changing tools both hydraulical and Pneumatic. Accuracy and ergonomicshave been coordinated to realize the highest level of productivity.

    press brake

    cnc sheet followerangle measuring system

    bending robotic cell

    HSC-Ultra Techical Specification


    HSC CNC press brake


    ABDEC
    ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
    HSC/EHC(KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
    63T/2500630250020003204201505.548002850*1750*2350
    80T/2500800250020003504802007.558002850*1850*2450
    100T25001000250020004004802007.565002850*1850*2500
    100T/32001000320027004004802007.585003850*1850*2600
    125T/25001250250020004004802007.576003000*1850*2500
    125T/32001250320027004004802001190003850*1850*2600
    125T/400012504000320040048020011100004610*1850*2600
    160T/320016003200270040048020011105003900*1900*2600
    160T/400016004000320040048020011120004650*1900*2700
    200T/320020003200270040048020015120003900*1900*2700
    200T/400020004000320040048020015140004700*1900*2800
    200T/500020005000400040048020015180005800*1900*2900
    200T/600020006000490040048020015220006800*1900*3000
    250T/320025003200270040052025018.5145003900*2100*2800
    250T/400025004000320040052025018.5165004700*2100*2900
    250T/500025005000400040052025018.5200005800*2100*3000
    250T/600025006000490050052025018.5240006500*2100*3100
    320T/320032003200270040052025022170004000*2100*3000
    320T/400032004000320040052025022200004800*2200*3200
    320T/500032005000400050052025022250005800*2200*3400
    320T/600032006000490050052025022300006500*2200*3600
    400T/400040004000320050060032030260004800*2400*3500
    400T/500040005000400050060032030320005500*2400*3600
    400T/600040006000490050060032030380006500*2400*3800
    500T/400050004000320050060032037300004800*2600*3600
    500T/500050005000400050060032037390005500*2600*3800
    500T/600050006000490050060032037500006500*2600*4000
