    220V 380V 415V 440V Hydraulic Servo CNC Press Brake Machine Genius HSC Ultra

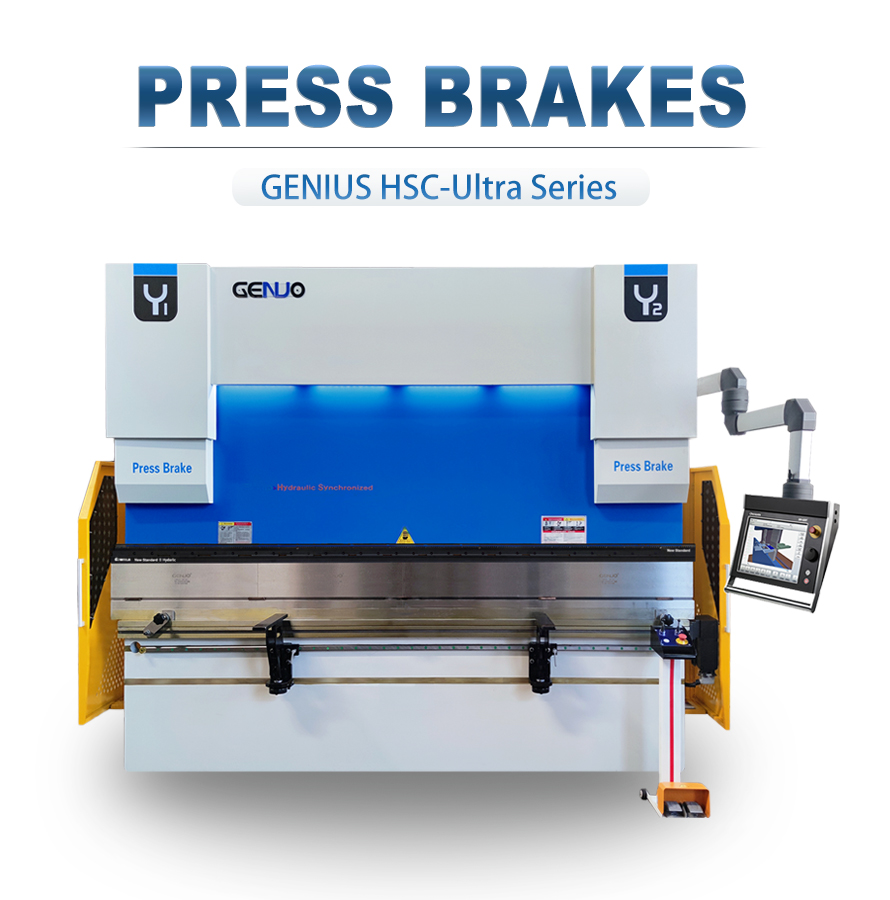

    Genius HSC-Ultra Hydraulic Servo CNC Press Brake

    GENUO Genius Ultra is an advanced high-performance CNC Press Brake with 9 axes.

    This series of machines is equipped with powerful CNC control and a 6-axis back gauge system.

    This Press Brake maximizes efficiency and yield by using the most innovative software for offline programming.

    Due to the fact that all 6-axis rear gauges can independently position each other, which provide maximum flexibility and fastest production speed. The controller calculates the finger positions in 3D(X, R, Z).

    In addition, a stable finger position can optimize the needs of post gauge adjustment and help you save setup time, especially for asymmetric parts. While balancing ultimate performance and functionality, laser guards also ensure the safety of operators.

    Undoubtedly, this is a world-class CNC Press Brake with high benchmark performance.


    Standard Equipment

    Optional Equipment

    Delem DA-66T CNC Control Delem DA-69T, CYBELEC VT19 MX, ESA 875W
    High-yield steel mono-block frame Main servo motor SVP control(Energy conservation)
    Precision Y1, Y2 axis synchronous Ram positioning CNC sheet follower front support device
    Accurate X1,X2,R1,R2,Z1,Z2 axis back gauge Laser check angle detection feedback device
    Auto V axis motorized CNC crowning system WILA type top and bottom tool clamping system
    European-style punch and 4V/2V/1V Dies Fully automatic bending robotic cell
    Fast punch clamps and movable sliding front support Bending tools management cabinet or trolley

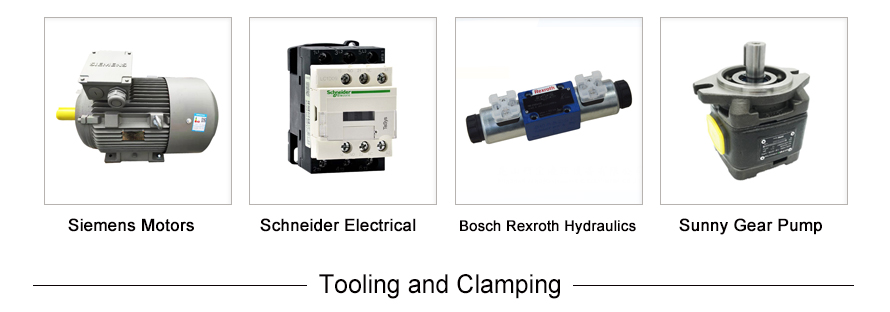

    SIEMENS main motor,Sunny pump,Schneider Electric Special heights, Daylight, Throat Depth are available
    BOSCH Rexroth hydraulic system,GIVI linear encoder 63~500 Tons and 8~20ft Bending Lengths options
    DSP or Keli Lasersafe protection guard Single/Tandem/Trio optional


    ⊙Delem DA-66T


    3D and 2D graphical touch screen prog ramming with 17" high resolution colo ur TFT. Full Windows application suite.

    DA-66T is applicable to all synchronized series bending machines of GENIUS,
    ECO-GREEN and GAINT. Up to 8+1 axes control (Y1-Y2 , X1, X2,R1,R2,Z1,Z2
    and Crowning)

    ⊙ CYBELEC VisiTouch 19


    19" color streamlined glass touch screen 2D graphical profile drawing. Complete programming of parts on a single page.
    VisiTouch 19 is a powerful numerical control that can be adapted to standard press brakes Up to the most sophisticated models controlling any number of axes.


    ⊙ESA VIS-875W


    Ultra-large 21 ”TFT LCD Full HD Multitouch screen both of all 3D Cad-Cams and of any type of machine up to the incredible limit
    of 128 axes. industrial integrated PC with Windows 10 operating system, high-power Intel i5 3.2 Ghz CPU with 8 Gb of RAM.
    own Virtually unlimited bi-board connectivity and expandability

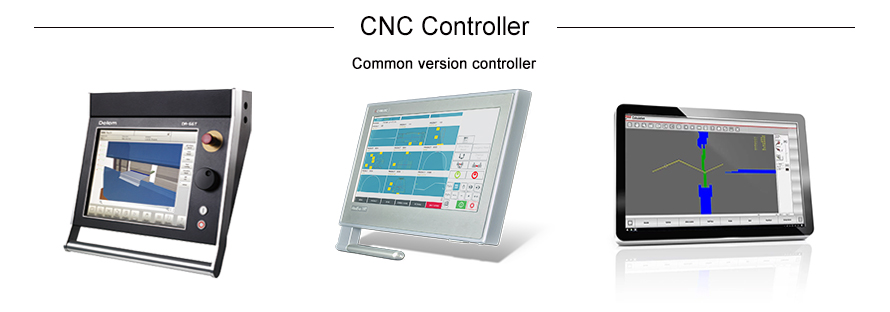

    Common version controller



    ▼ 6 Axis Back Gauge (X1,X2,R1,R2,Z1,Z2)


    Establishing the right back gauge for your projects will
    allow for increased part production and precision.
    From intricate parts which typically require more axes
    to large quantities that require more time and therefore
    increased cost, the correct back gauge for each job is
    essential to lowering costs per part which ultimately
    benefts your bottom line. GENUO technicians are
    happy to assist you with any questions you may
    have on your project requirements.

    ▼ 4 Axis Back Gauge (X,R,Z1,Z2)


    GENUO have vast experience with R&D and designing
    components to very tight tolerances with SOLIDWORKS
    CAD modelling techniques,and that CAE,ANSYS,
    SOLID-WORKS used as the method to analyze the
    linear static construction, stressand defor-mation for
    machine frames. So for complicat-ed structures, highly
    com-plex loadings and transient modelling.The foundat
    -ion of all GENUO press brakes is a solid,monoblock
    frame made from high-yield steel.



    ▼Proportional Control


    German Bosch Rexroth integrated "hydraulic system block", hydraulic transmission with high reliability , integrated hydraulic system can effectively alleviate the problem caused by leakage

    of hydraulic fluid.

    ▼Linear Encoder Feedback


    The deformation is measured accurately and compensated

    by feedback method.
    The accuracy can be achieved uM level.


    GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.
    To help greatly improve your productivity and business benefits.

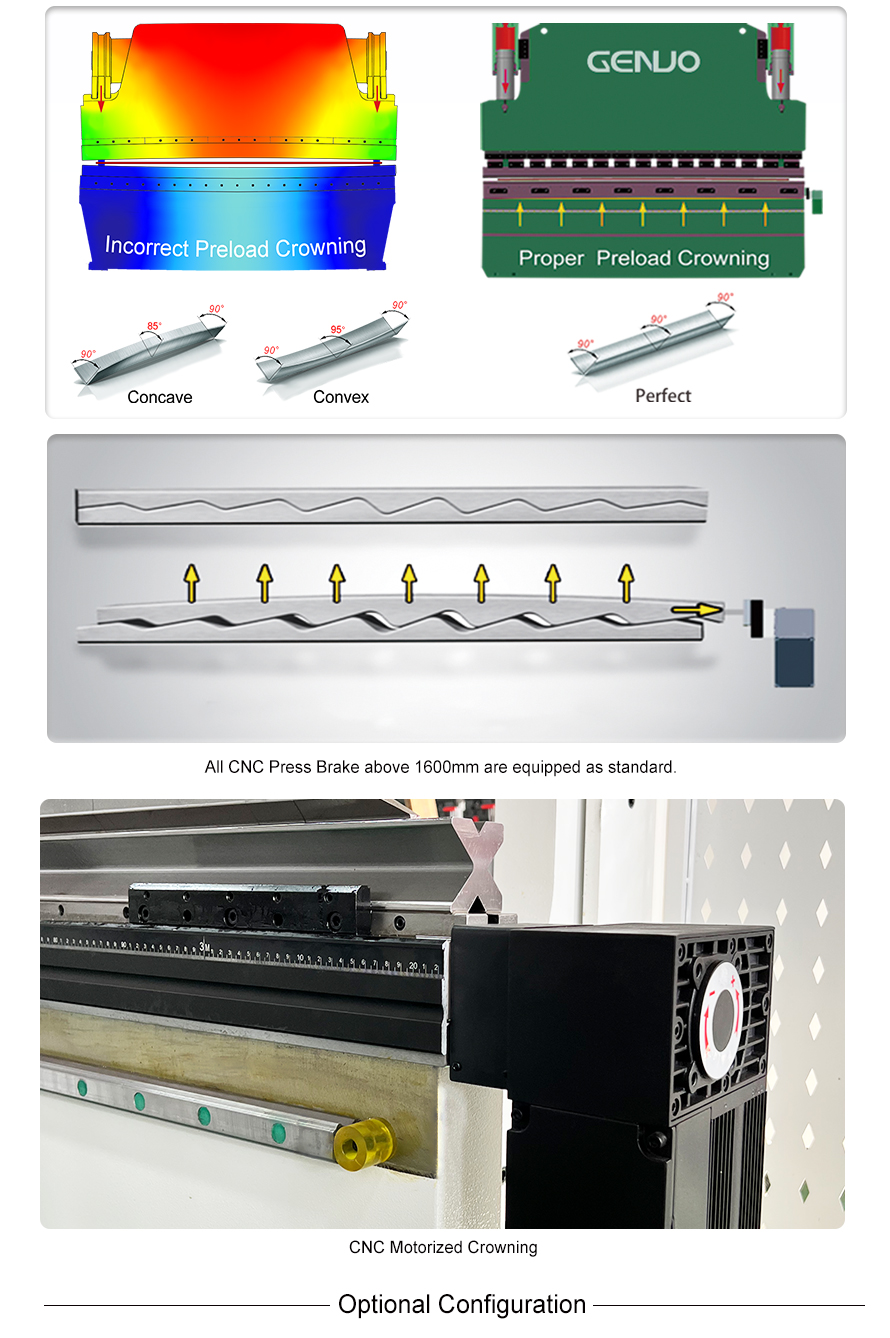

    To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for possible tooling wear to maintain parallel contacting surfaces.CNC crowning systems allow the press brake control to be

    pre-programmed with machine characteristics and defection data.
    Adjust the calculate and setting accordingly for different characteristics of different materials.



    Servo Pump Control Technology


    The main servo motor SVP can controls the power stroke, fast stroke, and bending force.


    It can significantly reduce idle overflow and noise of actuator, suppress oil temperature rise, and ensure continuously stable operation.


    Modular structure makes installation more flexible and consumes less hydraulic oil (save 40% energy in comparison to standard press brakes)

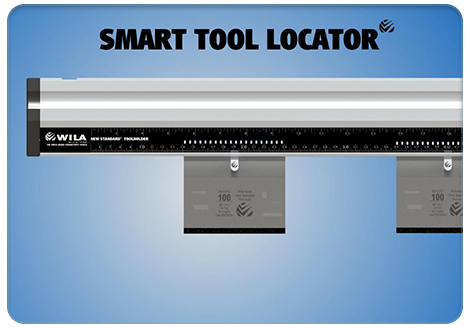

    Auto Tool Clamping System


    WILA'S state of the art Clamping systems can

    offer the ultimate solution when it comes to efficiently changing tools both hydraulical and Pneumatic.


    Accuracy and ergonomicshave been coordinated

    to realize the highest level of productivity.

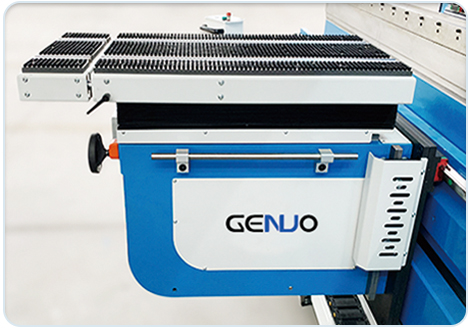

    CNC Sheet Follower


    This CNC bending support suitable for all kinds

    of large sheet metal, especially thin metal sheet.


    Perfect to maintain synchronization with the sheet

    during the bending process.


    which lightens the operators work moving heavy pieces, improves bending efficiency and reduces operator risk.


    Angle Measuring System


    Automatic angle measuring system can measures workpieces and regulates the angle, regardless of material variations.


    Reduce your materials consumption.


    Shorten your machining times to get work started more quickly.


    Bending Robotic Cell


    In industry 4.0. Thanks to Genuo's fully automated bending cell solution.


    Realize unmanned reliable bending production

    around the clock.


    All risks associated with part handling during bending are faced by the robot and not by the operator.


    More safe and efficient



      ABDEC
    ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
     (KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
    63T/2500630250020003204201505.548002850*1750*2350
    80T/2500800250020003504802007.558002850*1850*2450
    100T25001000250020004004802007.565002850*1850*2500
    100T/32001000320027004004802007.585003850*1850*2600
    125T/25001250250020004004802007.576003000*1850*2500
    125T/32001250320027004004802001190003850*1850*2600
    125T/400012504000320040048020011100004610*1850*2600
    160T/320016003200270040048020011105003900*1900*2600
    160T/400016004000320040048020011120004650*1900*2700
    200T/320020003200270040048020015120003900*1900*2700
    200T/400020004000320040048020015140004700*1900*2800
    200T/500020005000400040048020015180005800*1900*2900
    200T/600020006000490040048020015220006800*1900*3000
    250T/320025003200270040052025018.5145003900*2100*2800
    250T/400025004000320040052025018.5165004700*2100*2900
    250T/500025005000400040052025018.5200005800*2100*3000
    250T/600025006000490050052025018.5240006500*2100*3100
    320T/320032003200270040052025022170004000*2100*3000
    320T/400032004000320040052025022200004800*2200*3200
    320T/500032005000400050052025022250005800*2200*3400
    320T/600032006000490050052025022300006500*2200*3600
    400T/400040004000320050060032030260004800*2400*3500
    400T/500040005000400050060032030320005500*2400*3600
    400T/600040006000490050060032030380006500*2400*3800
    500T/400050004000320050060032037300004800*2600*3600
    500T/500050005000400050060032037390005500*2600*3800
    500T/600050006000490050060032037500006500*2600*4000
