    High Precision 4+1 Axis Hydraulic Synchronize Servo Bending Machine 3200mm

    Ask Lasest Price
    Brand Name : genuo
    Model Number : HSC PRO - 63T/80T/100T/125T/160T/200T/250T/400T
    Certification : M.2019.206.C3862
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 1 Set/Sets Every 15~35 days
    Delivery Time : 90 days
    Price : negotiable
    • Product Details
    • Company Profile

    High Precision 4+1 Axis Hydraulic Synchronize Servo Bending Machine 3200mm

    High Precision 4+1Axis Hydraulic Synchronize Bending Machine 3200mm CNC Press Brake


    → Product Introduction:


    The Genius Pro HSC series CNC press brake is based on the validated design of the Genius series. The Y1 and Y2 axis are feedback in real-time through advanced servo proportional valves and Linear encoders, ensuring high bending accuracy and stability. The high-precision back guage system with large stroke and 4-axis can achieve flexible bending dimensions and angles. The machine automatically calculates pressure, protrusion, and unfolding dimensions based on the length and thickness of the workpiece. While continuing the excellent performance of the former, it is equipped with a more powerful CNC controller. The advanced 2D graphics programming function, automatic calculation, and step demonstration combined with the upgraded multi axis back gauge can handle more complex and irregular workpiece bending. Higher configuration machines make machine operation simpler and more efficient. This is a CNC bending machine that integrates precision and high intelligence. 40T~500T and 4~20ft optional.


    → Product Feature:


    1. Innovative and integrated servo pump control technology;


    2. Integrated hydraulic system and stainless steel tank ;


    3. Significantly reduce excess overflow and improve operating speed;


    4. Minimal oil and energy, precise slider control and operation;


    5. Advanced motion technology and quiet operation;


    6. Flexible features and options;


    7. Can save more than 50% energy.


    → Machine Application:


    Hydraulic CNC Press Brake - It is a sheet metal forming machine designed for cold rolling sheet metal processing, widely used in automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries of sheet metal bending processing.With advanced motion technologies and impressively quiet with the most flexible features and options, the Genius pro is one of the choices in creating complex parts.. 40T~800T optional.


    → Product Configuration:



    Standard Equipment:


    Delem DA-66T 7-Axis CNC Control


    High-yield steel mono-block frame


    Precision Y1, Y2 axis synchronous Ram positioning


    Accurate heavy-duty X,R,Z1,Z2 axis back gauge


    Auto V axis motorized CNC crowning system


    European-style punch and 4V/2V/1V Dies


    Fast punch clamps and movable sliding front support


    SIEMENS main motor,Sunny pump,Schneider Electric


    BOSCH Rexroth hydraulic system,GIVI linear encoder


    EMB ferrule type pipe connector, NO,K sealing rings

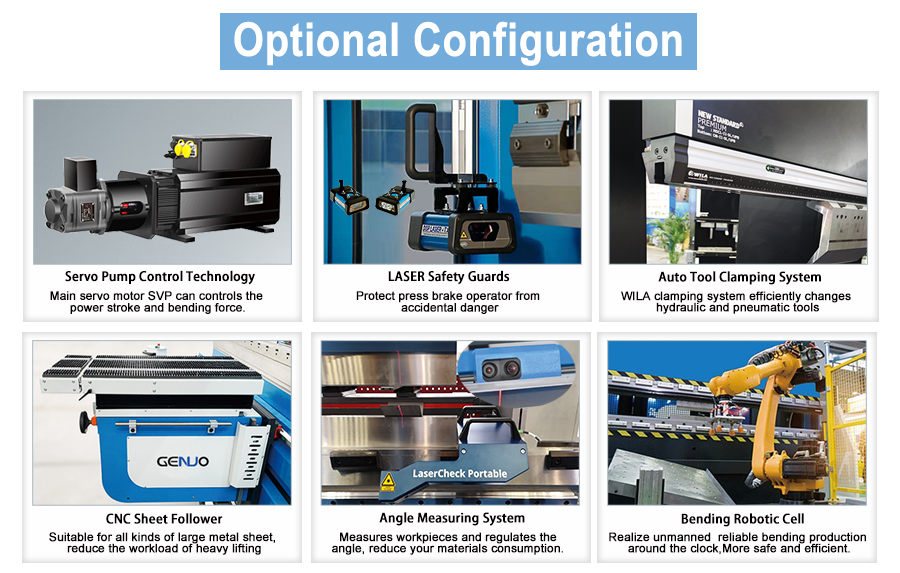

    Feature:


    CYBELEC CybTouch 15, ESA 875W,Delem DA-69T


    Main servo motor SVP control(Energy conservation)


    DSP or Keli Lasersafe protection guard


    CNC sheet follower front support device.


    Lasercheck angle detection feedback device


    WILA type top and bottom tool clamping system


    Fully automatic bending robotic cell


    Automatic rail and screw lubrication system


    Bending tools management cabinet or trolley


    Single/Tandem/Trio optional




    → Machine :



    ⊙Delem DA-66T


    3D and 2D graphical touch screen prog ramming with 17" high resolution colo ur TFT. Full Windows application suite.

    DA-66T is applicable to all synchronized series bending machines of GENIUS,

    ECO-GREEN and GAINT.

    Up to 8+1 axes control (Y1-Y2 , X1, X2,R1,R2,Z1,Z2 and Crowning)

    ⊙ CYBELEC CybTouch 15


    CybTouch 15 PS is a 2D numerical control specifically dedicated for entry to mid-range CNC press brakes up to 6 axes.
    The CybTouch 15 PS features an intuitive touch screen user interface, offering a high integration of functionalities,User-friendly, easy to operate, ​simply powerful and userfriendly.


    ⊙ESA VIS-875W


    Ultra-large 21 ”TFT LCD Full HD Multitouch screen both of all 3D Cad-Cams and of any type of machine up to the incredible limit
    of 128 axes. industrial integrated

    PC with Windows 10 operating system,

    high-power Intel i5 3.2 Ghz CPU with 8 Gb

    of RAM. own Virtually unlimited bi-board
    connectivity and expandability

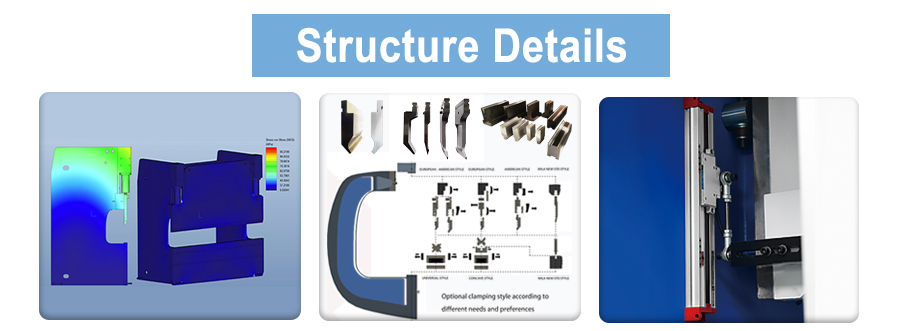

    ▼Rigid Frame Construction


    GENUO have vast experience with R&D

    and designing components to very tight tolerances with SOLIDWORKS ,CAD modelling techniques,and that CAE, ANSYS,SOLIDWORKS used as the method to analyze the linear static construction, stressand deformation for machine frames. So for complicated structures, highly com-plex loadings and transient modelling. The foundation of all GENUO press brakes is a solid,monoblock frame made from high-yield steel.

    ▼Tooling And Clamping


    GENUO provides a variety of tooling

    solutions to meet your different production needs.
    Not only that, we are also experts in the field
    of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.
    To help greatly improve your productivity and
    business benefits.

    ▼Linear Encoder Feedback


    The deformation is measured accurately
    and compensated by feedback method.
    The accuracy can be achieved uM level.





    To confrm a constant bend angle, manual or CNC crowning is essential which will offset potential deviations and allow for possible tooling wear to maintain parallel contacting surfaces.CNC crowning systems allow the press brake control to be pre-programmed with machine characteristics and defection data. Adjust the calculate and setting accordingly for different characteristics of different materials.






    — HSC PRO Techical Specification


      ABDEC
    ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
     (KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
    40T/160040016001300300420150430001950*1750*2350
    63T/2500630250020003204201505.548002850*1750*2350
    80T/2500800250020003504802007.558002850*1850*2450
    100T25001000250020004004802007.565002850*1850*2500
    100T/32001000320027004004802007.585003850*1850*2600
    125T/25001250250020004004802007.576003000*1850*2500
    125T/32001250320027004004802001190003850*1850*2600
    125T/400012504000320040048020011100004610*1850*2600
    160T/320016003200270040048020011105003900*1900*2600
    160T/400016004000320040048020011120004650*1900*2700
    200T/320020003200270040048020015120003900*1900*2700
    200T/400020004000320040048020015140004700*1900*2800
    200T/500020005000400040048020015180005800*1900*2900
    200T/600020006000490040048020015220006800*1900*3000
    250T/320025003200270040052025018.5145003900*2100*2800
    250T/400025004000320040052025018.5165004700*2100*2900
    250T/500025005000400040052025018.5200005800*2100*3000
    250T/600025006000490050052025018.5240006500*2100*3100
    320T/320032003200270040052025022170004000*2100*3000
    320T/400032004000320040052025022200004800*2200*3200
    320T/500032005000400050052025022250005800*2200*3400
    320T/600032006000490050052025022300006500*2200*3600
    400T/400040004000320050060032030260004800*2400*3500
    400T/500040005000400050060032030320005500*2400*3600
    400T/600040006000490050060032030380006500*2400*3800
    500T/400050004000320050060032037300004800*2600*3600
    500T/500050005000400050060032037390005500*2600*3800
    500T/600050006000490050060032037500006500*2600*4000
