Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender

    Buy cheap Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender from wholesalers

    Buy cheap Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender from wholesalers
    • Buy cheap Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender from wholesalers

    Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender

    Ask Lasest Price
    Brand Name : genuo
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    • Product Details
    • Company Profile

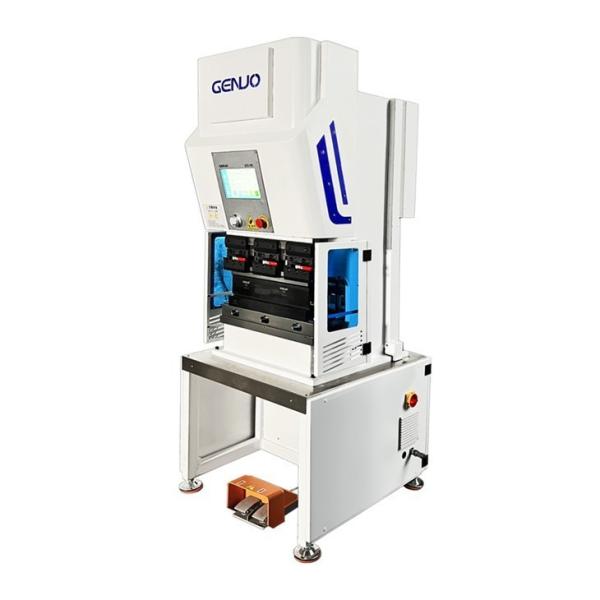

    Mini Pure Electric Servo Series CNC Press Brake Hydraulic Press Metal Bender

    Mini Pure Electric Servo Series CNC Press Brake


    mini press brake


    Standard Equipment

    Optional Equipment

    ◆ GENUO ETC-10T CNC control.

    ◇ Delem DA-53T,DA-66T, ETC-16T CNC control.
    ◆ Dual iron casting cage frame.◇ 2 aixs backgauge with R-axis or mutil Axis.
    ◆ High precision Y and X-axis.◇ DSP or Keli Lasersafe protection guard.
    ◆ HIWIN linear guide rail.◇ Automatic lubrication system.
    ◆ Japan NACHI bearing.◇ Double sided quick release clamps.
    ◆ Schneider electrical components.◇ Bending tools management cabintet.
    ◆ German IF heavy-duty ball screw.◇ 3~12Tons and 200~600mm Lenght options.

    CNC Controller


    ⊙ GENUO ES-10T CNC Control

    ES-10T is a new generation of performance bending control system of GENUO dedicated to electric servo press brakes. The controller has rich interfaces, Configure an easy-to-use angle and back gauge automatic control program. Powerful multi program storage and calling make bending of different complex workpieces more convenient. Featured encoder handwheel configuration. The machine can be easily adjusted in any mode.

    cnc controller


    Structure Details

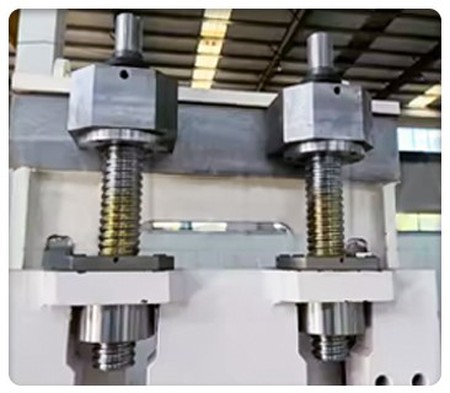

    ▼ High precision ball screw

    Genuo Pure Mini series press brakes use German IF heavy-duty

    ball screws to ensure the efficiency of the machine, maximize productivity and achieve high-precision bending operation.

    ball screw

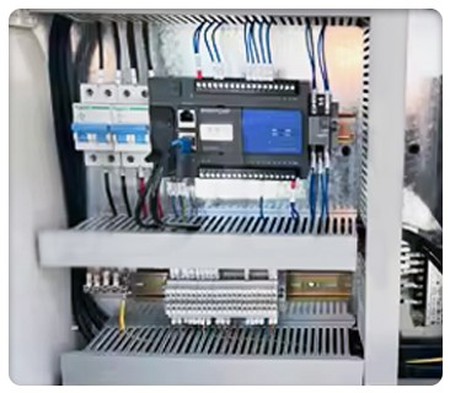

    ▼ Electronic Control System

    The electrical control system consists of several electrical components, including control system, power supply system, etc. The main functions are: automatic control, protection, monitoring and measurement. They cooperate with each other, greatly reducing the failure rate, is an important part of the stable operation of the machine and safe operation.

    Electronic Control System


    ▼ Servo Motor

    Compared with other motors, servo motors have the significant advantages of energy saving, environmental protection and pollution-free, accurate and quiet operation, fast slider speed, high production efficiency and low maintenance cost. The servo motor driven bending machine does not use hydraulic oil to transfer pressure, avoid affecting the operating accuracy and speed, and is also more suitable for temperature and long -term high load processing environment.

    Servo Motor


    ▼ Backgauge System

    Backgauge is a mechanical system whose main function is to interact with the CNC controller of the press brake to precisely position the metal material for bending and forming. Establishing the right Back-gauge for your project will allow for increased part production and accuracy, and GENUO technicians are happy to help you with any questions about your project requirements.

    Backgauge System

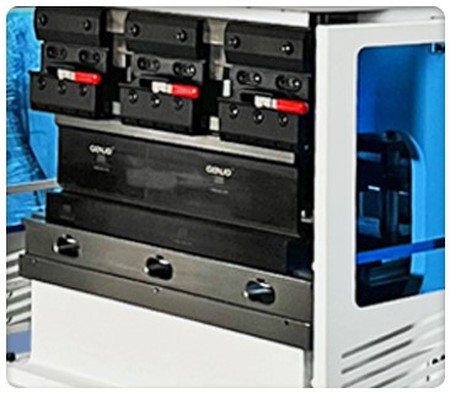

    ▼ Tooling and Clamps

    Pure Series Press Brake comes standard with Genuoaccessories such as quick clamps and quick change top punches to save time. GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools.If you have any special bend, our engineers will customize special tools for each workpiece,improve your productivity and business benefits.

    Tooling and Clamps


    Machine advantage

    mini press brake


    The key mechanical parts ofthe machine tool adopt finite element analysis toanalyze the deformation and safety factor; so as to ensure the high rigidityrequirements of the whole machine tool and the reliability oflong-term use.


    Optional Configuration

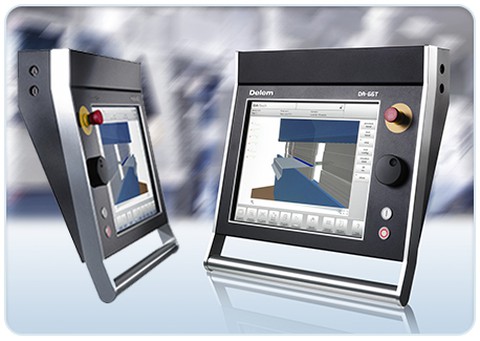

    Delem Controller


    Delem Controller Optional

    New generation of DA-Touch controls offers a higher level of efficiency in programming, operation and control. DA-66T offers 2D programming, including automatic bending sequence calculations and collision detection, 3D visualization in simulation and production. DA-58T is an advanced complete 2D graphic control solution for synchronous press brake servo and inverter control. DA-53AT features industrial-grade multi- touch technology, high-resolution color TFT, industrial-grade multi-touch technology and access to a proven Delem user interface.


    Techical Specification

    Pure Electric servo Series Mini Press Brake
    Machine ParameterES-3T200ES-6T400ES-12T600
    Bending Force30 KN60 KN120 KN
    Bending Length200 mm400 mm600 mm
    Column Distance300 mm370 mm450 mm
    Throat Depth/160 mm200 mm
    Stroke120 mm120 mm120 mm
    Open Height420 mm420 mm420 mm
    Approach Speed200 mm/s200 mm/s200 mm/s
    Working Speed1~30 mm/s1~30 mm/s1~30 mm/s
    Return Speed200 mm/s200 mm/s200 mm/s
    Main motor2 KW3 KW5.5 KW
    Dimensions700x700x1980 mm750x750x1980 mm850x850x2080 mm
    Weight350 KG600 KG800 KG

    machine
