    Energy Saving Electric CNC Press Brake Metal Sheet Bending Machine Eco Friendly

    Ask Lasest Price
    Brand Name : genuo
    Model Number : ES-18T/20T/30T/40T/60T/100T
    Certification : M.2019.206.C3862
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 1 Set/Sets Every 15~35 days
    Delivery Time : 90 days
    Price : negotiable
    • Product Details
    • Company Profile

    Energy Saving Electric CNC Press Brake Metal Sheet Bending Machine Eco Friendly


    Energy-Saving Electric CNC Press Brake Metal Sheet Bending Machine Eco-Friendly


    Machine Introduction :


    Genuo Pure ES series electric servo CNC press brake with integral machiningand tempering ultra-high strength bed, driven by AC servo motor and ball screw drive mechanism, it maximizes productivity. The machine all uses well-known foreign brand accessories, the whole series is standard with Genuo accessories, such as fast jig and quick change of top punch, to save time. 100% all-electric stamping brakes are highly versatile and designed for bending metal materials for a variety of applications.


    In addition, Genuo's self-developed CNC controller maximizes value creation and reduces costs, and the user-friendly interface operation makes the Pure ES series extremely cost-effective. High efficiency, low noise, environmental protection.


    The pure electric servo press brake automatically outputs the appropriate power according to the working conditions, without the use and replacement of hydraulic oil, avoiding the pollution of the waste liquid pressure oil to the environment.


    Compared with electro-hydraulic press brakes, it can save more than 60% of energy, reduce operating costs, and increase efficiency by more than 40%, thus becoming a more stable and reliable choice.


    → Product Configuration:



    Standard Equipment:


    < GENUO ETC-16T CNC control.


    < Mono block welded frame.


    < High precision Y1,Y2,X,R axis.


    < German IF heavy-duty ball screw.


    < HIWIN linear guide rail.


    < GlVl linear encoder.


    < Schneider electrical components.


    < European-style punch and 4V/2V/1V Dies


    Feature:


    < Delem DA-66T,DA-69T CNC control.


    < DSP or Keli Lasersafe protection guard.


    < Mutil-function 6 axis back gauge.(Above 40T)


    < Automatic lubrication system.


    < WlLA type top and bottom tool clamping system.


    < Lasercheck angle detection.


    < Bending tools management cabintet.


    < 20~100Tons and 1000~3200mm Lenght options.




    → CNC Controller :

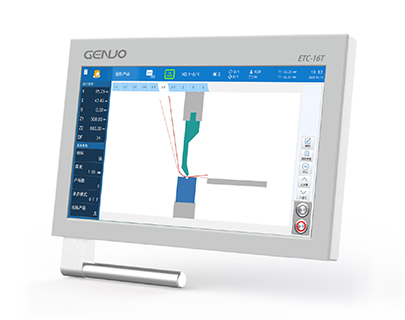

    ⊙ GENUO ETC-16T CNC Control


    ETC-16T is a new generation of performance bending

    control system of GENUO dedicated to synchronous

    press brakes.


    The system has rich interfaces, which can be easily connected to the automatic production line as a bending

    unit. It can cooperate with industrial robots in interactive operation,to the greatest extent freefrom manual

    intervention, improve the accuracy and efficiency

    of the equipment.





    → Structure Details :


    ▼ Heavy-Duty Ball Screw


    Genuo Pure ES Series Press brake is driven by the

    well-known brand servo main motor and the German

    IF heavy duty ball screw transmission mechanism.


    It ensures the efficiency of the machine, maximizes productivity and achieves high-precision bending

    operations.

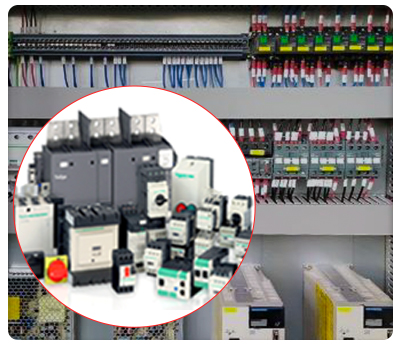

    ▼ Electrical Components


    Durable France Schneider electrics ensure the stable

    operation of the machine. Reasonable line connection

    and arrangement greatly reduces the failure rate.


    The integrated control module of hydraulic valve group makes the sliding block move smoothly and accurately.


    And the operator and all parts of the machine played

    a good protection.

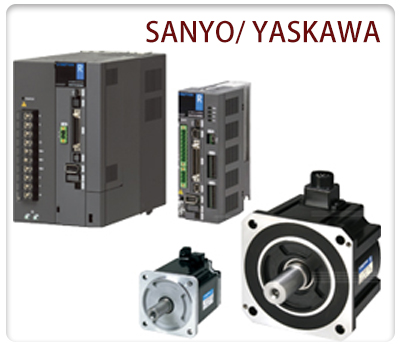

    ▼ Servo Driver & Main Motor


    Compared with other motors, servo motors have

    significant advantages, such as energy saving, environmental protection and pollution-free, fast slider speed, high production efficiency and low maintenance costs.


    The servo motor driven bending machine does not use

    the hydraulic system to transfer pressure, avoiding the

    negative impact on accuracy and speed, higher bending

    accuracy, quiet operation of the drive mode, saving costs.


    It is also more suitable for the processing environment of

    ambient temperature and high load for a long time.

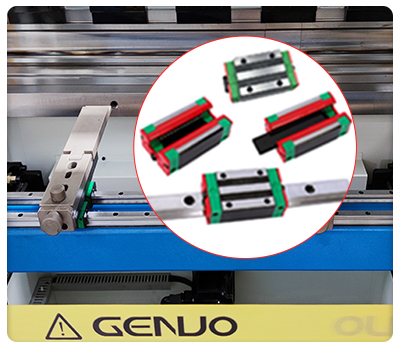

    ▼ Linear Guide Rail (back gauge)


    The linear guide rail guarantees the precision level

    of the rear stopper.


    Back gauge system Establishing the right back

    gauge for your projects will allow for increased part

    production and precision.


    From intricate parts which typically require more axes

    to large quantities that require more time and therefore increased cost.

    GENUO technicians are happy to assist you with

    any questions on your project requirements.





    Tooling and Clamps :


    GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue.

    To help greatly improve your productivity and business benefits.The Pure ES Series Press Brake comes standard with Genuo accessories such as quick clamps and quick change top punches to save time.




    PARTS Systems :



    LASER Safety Guards


    DSP LASER protects the press brake operator

    from the danger of crushing that can take place accidentally between the moving part of the

    machine and the fixed one.


    It assures to carry out the machine working

    cycle penalizing its execution time in the least.




    Delem Controller Optional


    DA-66T offers 2D programming, including automatic bending sequence calculations and collision detection, 3D visualization in simulation and production.

    DA-58T is an advanced complete 2D graphic control solution for synchronous press brake servo and inverter control.

    DA-53AT features industrial-grade multi-touch technology, high-resolution color TFT, industrial-grade multi-touch technology and access to a

    proven Delem user interface.





    - Technical Specifications -



    Pure ES Series Press Brake
    Machine ParameterES-20T1000ES-30T1250ES-40T1600ES-60T2500ES-100T3200
    Pressing Force200KN200KN400KN600KN1000KN
    Max.bending Length1000mm1250mm1600mm2500mm3200mm
    Distance Between Frames900mm1100mm1400mm2300mm2600mm
    Max Opening Height420mm470mm470mm470mm530mm
    Ram Stroke120mm150mm150mm150mm200mm
    Throat Depth250mm250mm300mm350mm400mm
    Approach Speed250mm/s300mm/s250mm/s220mm/s180mm/s
    Working Speed0.5-30mm/s0.5-30mm/s0.5-20mm/s0.5-20mm/s0.5-20mm/s
    Return Speed250mm/s300mm/s250mm/s220mm/s180mm/s
    X-axis Back Gauge Stroke300mm500mm500mm500mm500mm
    R-axis Back Gauge Stroke100mm100mm100mm150mm150mm
    Y1, Y2 axis accuracy±0.01mm
    X and R axis accuracy±0.01mm
    CNC Control AxisY1,Y2, X, RY1,Y2, X, RY1,Y2, X, R, Z1, Z2Y1,Y2, X, R, Z1, Z2,VY1,Y2, X, R, Z1, Z2,V
    Main servo motor11KW13KW15KW30KW30KW
    CNC SystemETC-16T
    Length x Width x Height(mm)1200x800x20001500x900x21002000x1200x23002900x1800x24004000x1900x2600
    Weight2000kg2600kg3800kg5500kg12000kg
