    ES Series Pure CNC Electric Servo Press Brake High Precision

    Ask Lasest Price
    Brand Name : genuo
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    • Product Details
    • Company Profile

    ES Series Pure CNC Electric Servo Press Brake High Precision

    electric servo cnc press brake


    Standard Equipment

    Optional Equipment

    ◆ GENUO ETC-16T CNC control.

    ◇ Delem DA-66T,DA-69T CNC control.
    ◆ Mono block welded frame.◇ DSP or Keli Lasersafe protection guard.
    ◆ High precision Y1,Y2,X,R axis.◇ Mutil-function 6 axis back gauge.(Above 40T)
    ◆ German IF heavy-duty ball screw.◇ Automatic lubrication system.
    ◆ HIWIN linear guide rail.◇ WlLA type top and bottom tool clamping system.
    ◆ GlVl linear encoder.◇ Lasercheck angle detection.
    ◆ Schneider electrical components.◇ Bending tools management cabintet.
    ◆ European-style punch and 4V/2V/1V Dies.◇ 20~100Tons and 1000~3200mm Lenght options.

    CNC Controller

    ⊙ GENUO ETC-16T CNC Control

    ETC-16T is a new generation of performance bending control system of GENUO dedicated to synchronous press brakes. The system has rich interfaces, which can be easily connected to the automatic production line as a bending unit.


    It can cooperate with industrial robots in interactive operation,to the greatest extent freefrom manual intervention, improve the accuracy and efficiency of the equipment.

    cnc controller


    Structure Details

    ▼ Heavy-Duty Ball Screw

    Genuo Pure ES Series Press brake is driven by the well-known

    brand servo main motor and the German IF heavy duty ball screw transmission mechanism. It ensures the efficiency of the machine, maximizes productivity and achieves high- precision bending operations.

    Ball Screw


    ▼ Electrical Components

    Durable France Schneider electrics ensure the stableoperation of the machine. Reasonable line connection and arrangement greatly reduces the failure rate. The integrated control module of hydraulic valve group makes the sliding block move smoothly and accurately. And the operator and all parts of the machine played a good protection.

    France Schneider electrics



    ▼ Servo Driver & Main Motor

    Compared with other motors, servo motors have signific- ant advantages, such as energy saving, environmental protection and pollution-free, fast slider speed, high production efficiency and low maintenance costs. The servo motor driven bending machine does not use the hydraulic system to transfer pressure, avoiding the negative impact on accuracy and speed, higher bending accuracy, quiet operation of the drive mode, saving costs. It is also more suitable for the processing environment of ambient temperature and high load for a long time.

    Servo Main Motor



    ▼ Linear Guide Rail (back gauge)

    The linear guide rail guarantees the precision level of the rear stopper. Back gauge system Establishing the right back gauge for your projects will allow for increased part production and precision. From intricate parts which typically require more axes to large quantities that require more time and therefore increased cost. GENUO technicians are happy to assist you with any questions on your project requirements.

    Linear Guide Rail


    Tooling and Clamps

    GENUO provides a variety of tooling solutions to meet your different production needs. Not only that, we are also experts in the field of bending tools. If you have any special bend, our engineers will customize special tools for each workpiece, which greatly expands your press brake function and revenue. To help greatly improve your productivity and business benefits. The Pure ES Series Press Brake comes standard with Genuo accessories such as quick clamps and quick change top punches to save time.


    tooling and clamps


    Machine advantage

    advantage


    PARTS Systems

    machine

    High Strength Fuselage

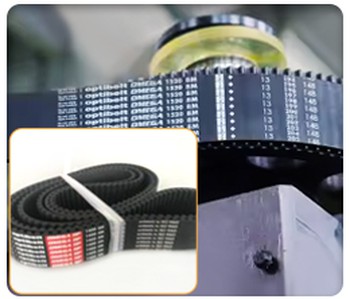

    Timing Belt

    Timing Belt (OPTIBELT)

    Bearing

    Bearing (JAPAN NSK)

    Optional Configuration

    LASER Safety Guards

    LASER Safety Guards

    DSP LASER protects the press brake operator from the danger of crushing that can take place accidentally between the moving part of the machine and the fixed one. It assures to carry out the machine working cycle penalizing its execution time in the least.


    Delem Controller


    Delem Controller Optional

    New generation of DA-Touch controls offers a higher level of efficiency in programming, operation and control. DA-66T offers 2D programming, including automatic bending sequence calculations and collision detection, 3D visualization in simulation and production. DA-58T is an advanced complete 2D graphic control solution for synchronous press brake servo and inverter control. DA-53AT features industrial-grade multi- touch technology, high-resolution color TFT, industrial-grade multi-touch technology and access to a proven Delem user interface.


    Techical Specification

    Pure ES Series Press Brake
    Machine ParameterES-20T1000ES-30T1250ES-40T1600ES-60T2500ES-100T3200
    Pressing Force200KN200KN400KN600KN1000KN
    Max.bending Length1000mm1250mm1600mm2500mm3200mm
    Distance Between Frames900mm1100mm1400mm2300mm2600mm
    Max Opening Height420mm470mm470mm470mm530mm
    Ram Stroke120mm150mm150mm150mm200mm
    Throat Depth250mm250mm300mm350mm400mm
    Approach Speed250mm/s300mm/s250mm/s220mm/s180mm/s
    Working Speed0.5-30mm/s0.5-30mm/s0.5-20mm/s0.5-20mm/s0.5-20mm/s
    Return Speed250mm/s300mm/s250mm/s220mm/s180mm/s
    X-axis Back Gauge Stroke300mm500mm500mm500mm500mm
    R-axis Back Gauge Stroke100mm100mm100mm150mm150mm
    Y1, Y2 axis accuracy±0.01mm
    X and R axis accuracy±0.01mm
    CNC Control AxisY1,Y2, X, RY1,Y2, X, RY1,Y2, X, R, Z1, Z2Y1,Y2, X, R, Z1, Z2,VY1,Y2, X, R, Z1, Z2,V
    Main servo motor11KW13KW15KW30KW30KW
    CNC SystemETC-16T
    Length x Width x Height(mm)1200x800x20001500x900x21002000x1200x23002900x1800x24004000x1900x2600
    Weight2000kg2600kg3800kg5500kg12000kg

    machine
