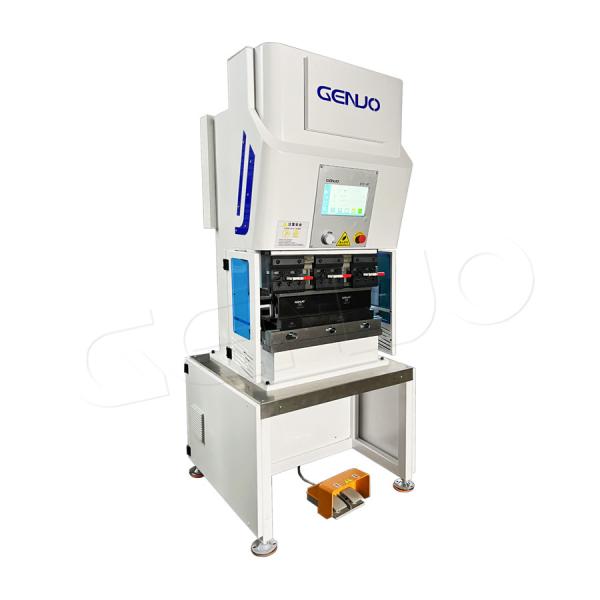

    Fully Automatic Mini Pure Electric Servo CNC Press Brake 200mm 400mm 600mm

    Ask Lasest Price
    Brand Name : genuo
    Model Number : ES-3T/6T/12T
    Certification : M.2019.206.C3862
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 1 Set/Sets Every 15~35 days
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Fully Automatic Mini Pure Electric Servo CNC Press Brake 200mm 400mm 600mm



    Machine Introduction :

    If you have to define Genuo mini series pure electric servo CNC Press Brake in three words, it must be innovation, reliability, and productivity.
    Electric Press brakes will quickly respond to your production requirements and are renowned for their high precision and performance. The newly designed small CNC press brake is simple and easy to use, with both speed and accuracy, and can meet the requirements of both household and commercial use.You can fully master this machine within two hours!
    The pure electric mini press brake has several advantages:Firstly, this machine uses Electric cylinder replaces oil cylinder for better performance;Secondly, this machine adopts Genuo's self-developed CNC controller to create maximum production value with minimal cost;Thirdly, this machine is manufactured as a whole and has a long service life. In addition, all components of this machine use well-known foreign brand accessories; Fourthly, this machine are environmental protection and energy saving.
    This is an excellent environmentally friendly bending machine for small workpieces. With this machine, you can easily bend workpieces, very fast and convenient. 3T~20T optional.


    → Product Configuration:



    Standard Equipment:


    < GENUO ETC-10T CNC control.


    < Dual iron casting cage frame.


    < High precision Y and X-axis.


    < HIWIN linear guide rail.


    < Japan NACHI bearing.


    < Schneider electrical components.


    < German IF heavy-duty ball screw.


    Feature:


    < Delem DA-53T,DA-66T, ETC-16T CNC control.


    < 2 aixs backgauge with R-axis or mutil Axis.


    < DSP or Keli Lasersafe protection guard.


    < Automatic lubrication system.


    < Double sided quick release clamps.


    < Bending tools management cabintet .


    < 3~12Tons and 200~600mm Lenght options.



    ⊙ GENUO ES-10T CNC Control


    ES-10T is a new generation of performance bending control system of GENUO dedicated to electric servo press brakes.


    The controller has rich interfaces, Configure an easy-to-use angle and back gauge automatic control program.


    Powerful multi program storage and calling make bending

    of different complex workpieces more convenient.

    Featured encoder handwheel configuration.

    The machine can be easily adjusted in any mode.



    ▼ High precision ball screw


    Genuo Pure Mini series press brakes use German IF

    heavy-duty ball screws to ensure the efficiency of the machine, maximize productivity and achieve high-precision
    bending operation.



    ▼ Electronic Control System


    The electrical control system consists of several electrical components, including control system, power supply

    system, etc.


    The main functions are: automatic control, protection, monitoring and measurement. They cooperate with each
    other, greatly reducing the failure rate, is an important part

    of the stable operation of the machine and safe operation.



    ▼ Servo Motor


    Compared with other motors, servo motors have the significant advantages of energy saving, environmental protection and pollution-free, accurate and quiet operation, fast slider speed, high production efficiency and low maintenance cost.


    The servo motor driven bending machine does not use hydraulic oil to transfer pressure, avoid affecting the operating accuracy and speed, and is also more suitable

    for temperature and longterm high load processing environment.



    ▼ Backgauge System


    Backgauge is a mechanical system whose main function

    is to interact with the CNC controller of the press brake to precisely position the metal material for bending and forming.

    Establishing the right Back-gauge for your project will

    allow for increased part production and accuracy, and GENUO technicians are happy to help you with any questions about your project requirements.



    ▼ Tooling and Clamps


    Pure Series Press Brake comes standard with Genuo accessories such as quick clamps and quick change top punches to save time.

    GENUO provides a variety of tooling solutions to meet

    your different production needs. Not only that, we are

    also experts in the field of bending tools.


    If you have any special bend, our engineers will customize special tools for each workpiece,improve your productivity and business benefits.




    The key mechanical parts ofthe machine tool adopt finite element analysis toanalyze the deformation and safety factor; so as to ensure the high rigidityrequirements of the whole machine tool and the reliability oflong-term use.



    Delem Controller Optional


    New generation of DA-Touch controls offers a

    higher level of efficiency in programming, operation and control.

    DA-66T offers 2D programming, including automatic bending sequence calculations and collision detection, 3D visualization in simulation and production.

    DA-58T is an advanced complete 2D graphic control solution for synchronous press brake servo and inverter control.

    DA-53AT features industrial-grade multi-touch technology, high-resolution color TFT, industrial-grade multi-touch technology and access to a

    proven Delem user interface.





    - Technical Specifications -


    Pure Electric servo Series Mini Press Brake
    Machine ParameterES-3T200ES-6T400ES-12T600
    Bending Force30 KN60 KN120 KN
    Bending Length200 mm400 mm600 mm
    Column Distance300 mm370 mm450 mm
    Throat Depth/160 mm200 mm
    Stroke120 mm120 mm120 mm
    Open Height420 mm420 mm420 mm
    Approach Speed200 mm/s200 mm/s200 mm/s
    Working Speed1~30 mm/s1~30 mm/s1~30 mm/s
    Return Speed200 mm/s200 mm/s200 mm/s
    Main motor2 KW3 KW5.5 KW
    Dimensions700x700x1980 mm750x750x1980 mm850x850x2080 mm
    Weight350 KG600 KG800 KG
