GNSP Series Press Brake Tooling Clamps GN Punch Holder

    Buy cheap GNSP Series Press Brake Tooling Clamps GN Punch Holder from wholesalers

    Buy cheap GNSP Series Press Brake Tooling Clamps GN Punch Holder from wholesalers
    • Buy cheap GNSP Series Press Brake Tooling Clamps GN Punch Holder from wholesalers

    GNSP Series Press Brake Tooling Clamps GN Punch Holder

    Ask Lasest Price
    Brand Name : genuo
    Price : negotiable
    Payment Terms : L/C, T/T, D/P, D/A
    • Product Details
    • Company Profile

    GNSP Series Press Brake Tooling Clamps GN Punch Holder

    press brake clamps


    Products Description

    We can supply various kinds of press brake tooling clamps. The mainly two types is normal type and fast type.

    We also can suppy hydraukc campsIn addition to the rapid clamping of the bending machine mold, it has the function of preventing the clampng or the mod and adjustng te uniorm torce or the moid.


    punch clamps


    GN Punch-Holder (Tooling clamp)

    GENUO holds both European style tooling as well as AMADA's latest One Touch style tooling. GENUO GNSP standard fast support.

    The patented rear butterfly pressing device can adapt to different types of European standard and Amada type punches.

    42CrMo or C45 high frequency quenching process stamping brake tools for durability.


    clamps

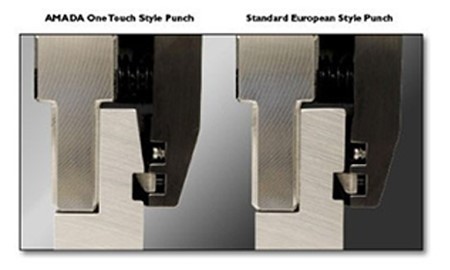

    VERSATILE CLAMPING

    The GN holds both standard European style punches

    and AMADA One Touch style punches allowing fast

    and easy tool setup. Slide in either tool and turn

    lever to secure punch.

    clamps

    GAPLESS SETUP

    The internal adjustment wedge allows the faster punch

    holders to be located directly next to each other providing

    setup flexibility when using smaller sectionalized punches.


    clamps

    OPERATOR SAFETY

    Drop prevention bar prevents punches from falling out

    of the punch holder during setup increasing operator

    safety. Once the punch is inserted into the clamp, the

    punch can be moved to any location along the brake

    bed eliminating the possibility of it falling out of

    the clamp.

    clamps

    SAFETY GROOVE

    A special clamp plate is available which mounts the holder

    to the machine utilizing the safety groove on the top potion

    of the punch holder. This special clamp plate prevents

    holder from dropping when horizontal movement

    of clamp is required.


    tool setup time comparison


    Products Configuration

    DescriptionTooling Clamp
    Code#GN15001
    Tool CompatibilityStandard European/AMADA One-Touch
    Machine CompatibilityHydraulic Press Brakes
    Holder Length 150mm150mm
    Effective Height 120mm120mm
    Allowable Tonnage1000kN/m(100tons/m)
