    High Quality 2025 CNC Sheet Metal Railway Hydraulic Bending Machine Hydraulic Press Brake With CNC Control

    Ask Lasest Price
    Brand Name : GENUO
    Model Number : ESC-40T/63T/80T/100T/125T/160T
    Certification : M.2019.206.C3862
    Price : negotiable
    Payment Terms : L/C,T/T,D/P,D/A
    Supply Ability : 1 Set/Sets Every 15~35 days
    Delivery Time : 80 days
    • Product Details
    • Company Profile

    High Quality 2025 CNC Sheet Metal Railway Hydraulic Bending Machine Hydraulic Press Brake With CNC Control

    High Quality 2025 CNC Sheet Metal Railway Hydraulic Bending Machine Hydraulic Press Brake With CNC Control



    New Machine description


    GENUO's Excellent ESC series is the latest generation of high-performance synchronized CNC Press Brake.Combining GENUO's independently developed controller,it maximizes value creation and reduces costs.User-friendly operating system and first-class design. Adhering to the philosophy of GENUO

    (Details Create Quality).With super quality and high precision, it also has a huge competitive advantage.

    More convenient to use, high cost performance!





    Standard EquipmentOptional Equipment
    ▲ GENUO ETC-16T 4 Axis CNC Control△ ETC-16T 5 Axis/7 Axis CNC Control
    ▲ Integral welded rigid high tensile steel frame△ DSP or SDKELI Lasersafe protection guard
    ▲ High precision Y1,Y2 axis synchronized closed-loop feedback△ Energy saving & low noise main servo SVP control
    ▲ Accurate X axis back gauge system△ 2 Axis(X,R) or 4-Axis (X,R,Z1,Z2)back gauge
    ▲ CNC Motorized crowning system△ The CNC Bending Sheet Follower
    ▲ European-style punch and 4V/2V/1V Dies△ WILA type top and bottom tool clamping system
    ▲ Fast punch clamps and movable sliding front support△ Bending tools management cabinet or trolley

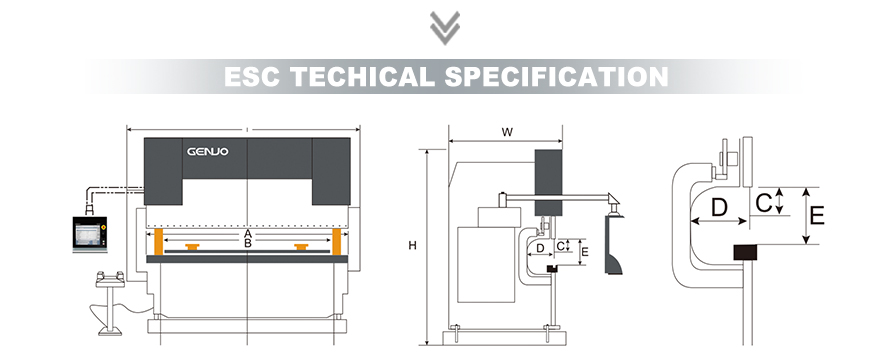

      ABDEC
    ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
    ESC(KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
    40T/160040016001250300420150428001950*1750*2350
    63T/2500630250019603204201505.542002850*1750*2350
    80T/2500800250019603504802007.545002850*1850*2450
    100T25001000250020004004802007.553002850*1850*2500
    100T/32001000320026004004802007.565003850*1850*2600
    125T/25001250250020004004802007.555003000*1850*2500
    125T/32001250320026004004802001170003850*1850*2600
    125T/40001250400032004004802001185004610*1850*2600
    160T/32001600320026004004802001188003900*1900*2600
    160T/400016004000320040048020011100004650*1900*2700
    200T/320020003200260040048020015116003900*1900*2700
    200T/400020004000320040048020015140004700*1900*2800
    200T/500020005000400040048020015160005800*1900*2900
    200T/600020006000490040048020015180006800*1900*3000
    250T/320025003200260040052025018.5125003900*2100*2800
    250T/400025004000320040052025018.5150004700*2100*2900
    250T/500025005000400040052025018.5170005800*2100*3000
    250T/600025006000490050052025018.5200006500*2100*3100
    320T/320032003200260040052025022145004000*2100*3000
    320T/400032004000320040052025022175004800*2200*3200
    320T/500032005000400050052025022200005800*2200*3400
    320T/600032006000490050052025022235006500*2200*3600
    400T/400040004000320050060032030220004800*2300*3500
    400T/600040006000490050060032030310006500*2300*3800
